Product Description
Across the range of products and procedures, LigaSure™ technology delivers a unique combination of pressure and energy to create a consistent seal with each application.
- Provides a combination of pressure and energy to create vessel fusion
- Permanently fuses vessels up to and including 7 mm in diameter and tissue bundles without dissection or isolation
- Average seal cycle is 2 to 4 seconds, when used with the ForceTriad™ energy platform
- Seals withstand three times normal systolic blood pressure
- Feedback-controlled response system automatically discontinues energy delivery when the seal cycle is complete, eliminating the guesswork
The hand switching units are: LS1037, LS1500, LS1020 and LS1520.
N-LS1037
Laparoscopic sealer/divider, hand or foot switch activated. 10 mm diameter. Length: 14.6 in. (37 cm). Straight, bilateral, blunt jaw.
| Length | 37 cm (14.6 in) |
| Shaft Diameter | 10 mm |
| Shaft Rotation | < 359 Degrees |
| Jaw Design | Straight, Blunt |
| Seal Length | 22 mm |
| Cut Length | 22 mm |
N-LS1500
Laparoscopic sealer/divider, hand or foot switch activated. 5 mm diameter. Length: 14.6 in. (37 cm). Dolphin nose jaw. 159-degree shaft rotation.
| Length | 37 cm (14.6 in) |
| Shaft Diameter | 5 mm |
| Shaft Rotation | 179 Degrees |
| Jaw Design | Dolphin Nose, 2.6 mm at Tip |
| Seal Length | 18 mm |
| Cut Length | 12 mm |
N-LS1020
The LigaSure Atlas™ 20 cm hand switching instrument (LS1020) is a blunt tip vessel sealer and divider, featuring a 20 cm shaft for use in open procedures.
| Length | 20 cm (7.9 in) |
| Shaft Diameter | 10 mm |
| Shaft Rotation | < 359 Degrees |
| Jaw Design | Straight, Bilateral, Blunt |
| Seal Length | 22 mm |
| Cut Length | 20 mm |
N-LS1520
The LigaSure™ dolphin tip 20 cm open instrument (LS1520) is a dolphin-nose tip vessel sealer and divider, featuring a 20 cm shaft for use in open procedures.
| Length | 20 cm (7.9 in) |
| Shaft Diameter | 5 mm |
| Shaft Rotation | 179 Degrees |
| Jaw Design | Dolphin Nose, 2.6 mm at Tip |
| Seal Length | 18 mm |
| Cut Length | 12 mm |
The LigaSyre Triad sealer and dividers combine the signature sealing consistency of LigaSure technology with long cutting length, atraumatic grasping and blunt dissection.
This instrument offers a long cutting length compared to other commercially available 5mm laparoscopic sealing devices, enables cutting independent of sealing, an provides sealing, grasping and access to surgical structures to accommodate a variety of laparoscopic procedures.
N-LF1637
Laparoscopic sealer/divider, hand or foot switch activated. 10 mm diameter. Length: 14.6 in. (37 cm). Straight, bilateral, blunt jaw.
This instrument offers a long cutting length compared to other commercially available 5 mm laparoscopic sealing devices, enables cutting independent of sealing, and provides sealing, grasping and access to surgical structures to accommodate a variety of laparoscopic procedures.
| Physical Characteristics & Generator Compatibility | |
|---|---|
| Length | 37 cm (14.6 in) |
| Shaft Diameter | 5 mm |
| Shaft Rotation | 180 Degrees |
| Jaw Design | Blunt, double-action with contoured tips |
| Seal Length | 19.5 mm |
| Cut Length | 17.8 mm |
| Generator Compatibility | Covidien Energy Platforms |
| General Characteristics | |
| Sealer/Divider | |
| Sterile, Single Use | |
| Hand Switching or Foot Switching | |
N-LF4318
The LigaSure Impact™ instrument (LF4318), working exclusively with the ForceTriad™ energy platform, combines TissueFect™ sensing technology with hand activation and an integrated cutting mechanism to create a multifunctional vessel sealing system that provides consistent, controlled tissue effect.
The LigaSure Impact™ instrument is valued for its large, curved jaws, 18 cm shaft length and LigaSure™ vessel sealing technology, which provides consistent sealing and fast transection of tissue.
| Physical Characteristics & Generator Compatibility | |
|---|---|
| Length | 18 cm (7.1 in) |
| Shaft Diameter | 13.5 mm (oval) |
| Shaft Rotation | 180 Degrees |
| Jaw Design | Curved, 14 Degrees |
| Seal Length | 36 mm |
| Cut Length | 34 mm |
| Generator Compatibility | ForceTriad™ Energy Platform |
| General Characteristics | |
| Sealer/Divider | |
| Sterile, Single Use | |
| Hand Switching or Foot Switching | |
N-LF1212A

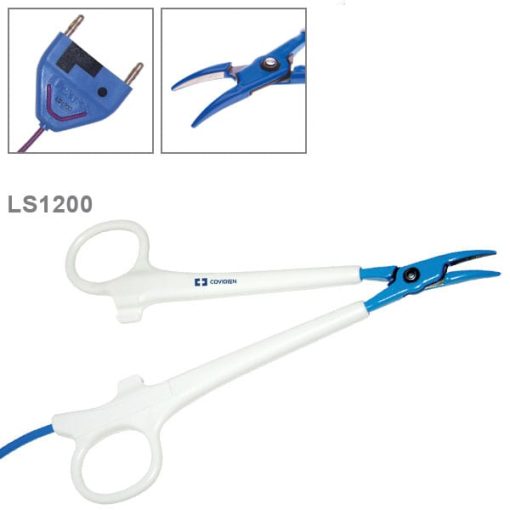

The alternative to the LS1200 is LF1212A but if it is used on a basic LigaSure you will need an adaptor. If used on a Triad there is no need for an adaptor.

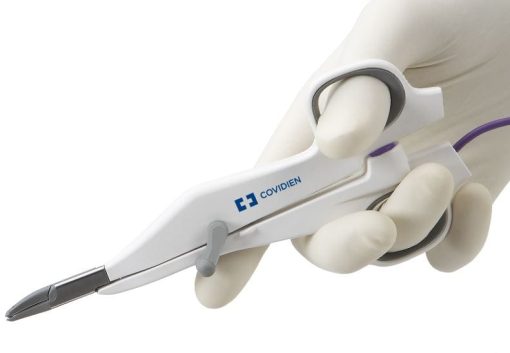

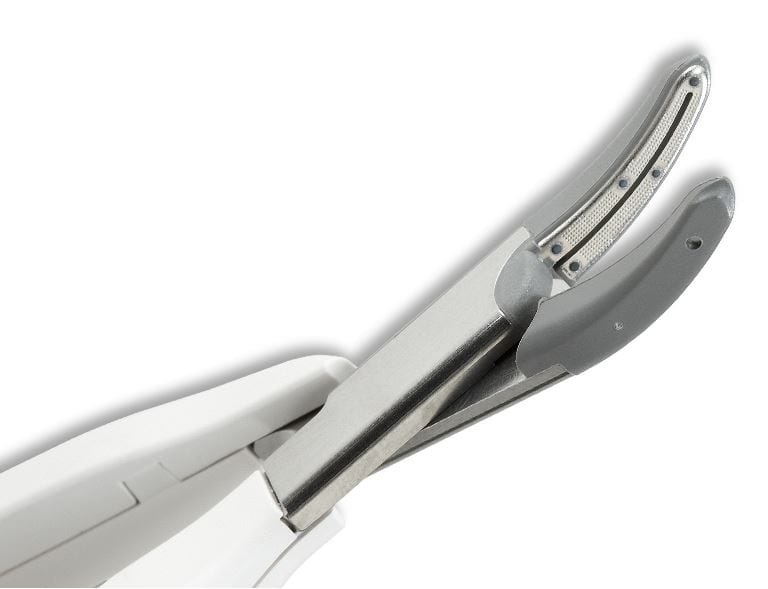

The LigaSure™ small jaw instrument (LF1212A), working exclusively with the ForceTriad™ energy platform, combines TissueFect™ sensing technology with hand or foot activation and an integrated cutting mechanism to create a multifunctional tissue sealing system that provides consistent, controlled tissue effect.
| Physical Characteristics & Generator Compatibility | |
|---|---|
| Length | 18.8 cm (7.4 in) |
| Jaw Design | 28 Degrees |
| Seal Length | 16.5 mm |
| Cut Length | 14.7 mm |
| Generator Compatibility | ForceTriad™ Energy Platform |
| General Characteristics | |
| Sealer/Divider | |
| Sterile, Single Use | |
| Hand Switching or Foot Switching | |
| Order Information | |
| Order Code | LF1212A (U.S. Only) LF1212 (Outside U.S.) |
