Product Description

The SonoFarm Mini was designed with farmers in mind but is also used by professionals requiring a simple and economic ultrasound system.

Weighing only 1.5kg (dimensions 17cm x 13cm x 5.5cm), the SonoFarm Mini is very portable – yet tough and robust.

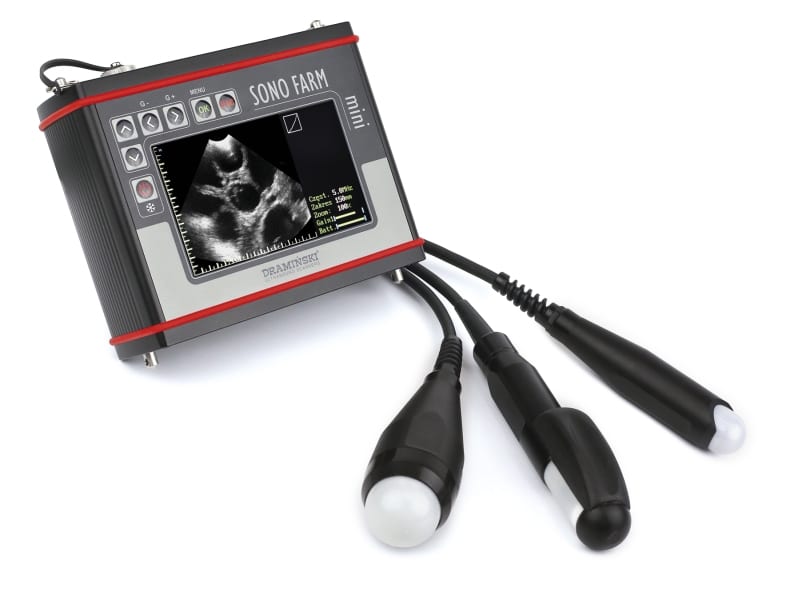

The SonoFarm mini operates with three inter-changeable mechanical probes with a wide viewing angle: rectal 180º, abdominal 90º and rectal-abdominal “Down Fire” 90º, which can be used for abdominal examination (sheep, pigs, goats) and rectal examination (cows).

The 5″ monitor displays a crystal clear image suitable for pregnancy diagnosis or general abdominal work.

The Draminski SonoFarm Mini has an international reputation for quality and reliability, Whether you are a vet, serious breeder, or farmer.

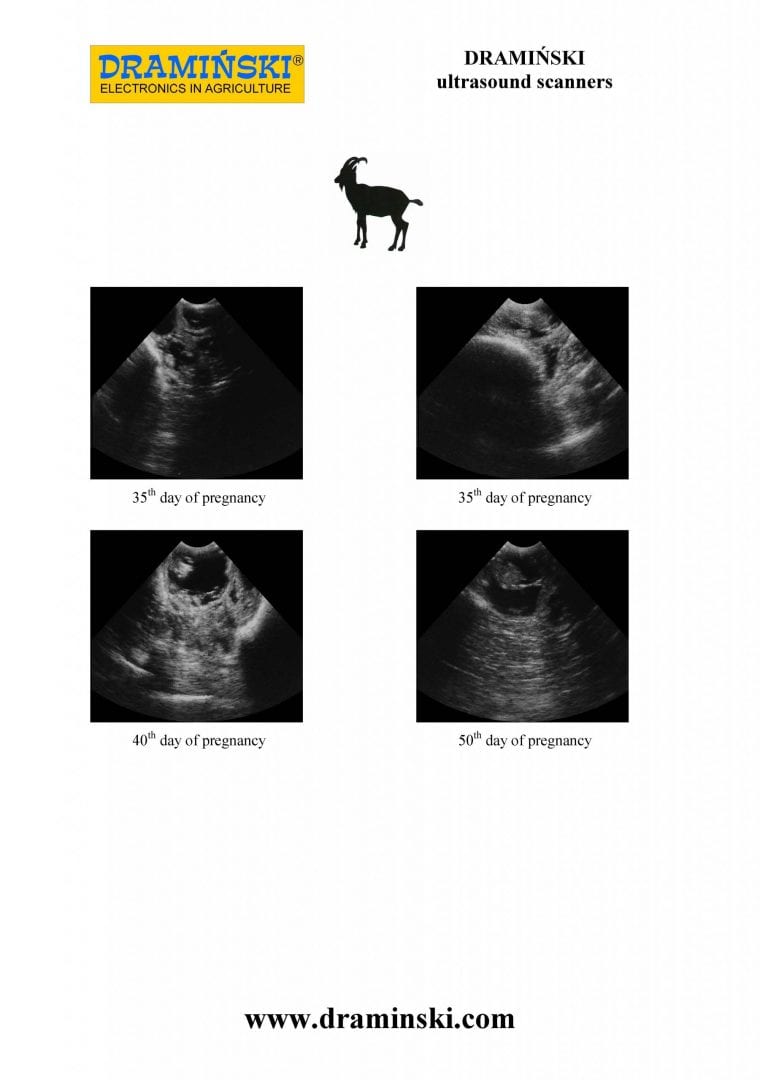

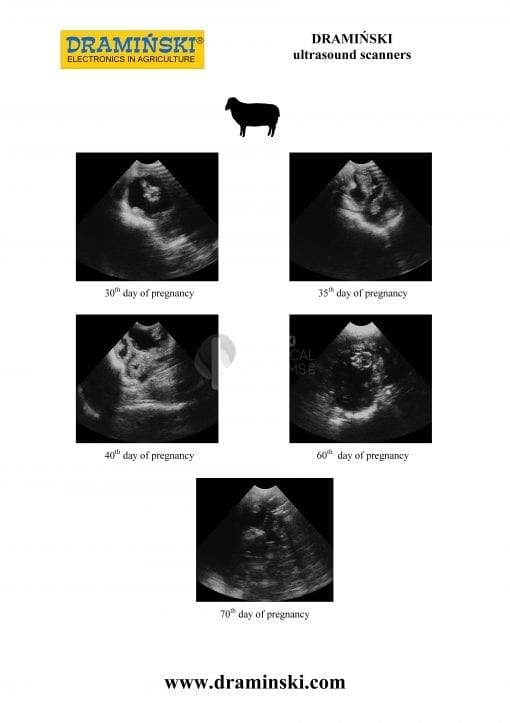

Early pregnancy scans save time and money – you can see goat and sheep pregnancy around the 35th day.

Product Features:

Enables profitability

• Your profit highly depends on how fast you are able to detect pregnancy. Thanks to quick detection of your animals’ condition you will be able to manage the process of procreation more efficiently, you will be able to monitor the pregnancy and first of all detect non-pregnant females. All these will help you to increase economic indicator of your farm.

Safety

• Having your own ultrasound scanner, you reduce the risk of infecting your flock with disease from another farm. Parvovirus, flu, salmonellosis, chlamidiosis, brucellosis, FMD, rotaviruses and circoviruses are just a few examples of infections and pathogens you can protect you livestock from if you guarantee a high level of biological security. The same equipment used by different farmers is one of the most common ways for disease transmission.

Portable

• It is light. Its weight is just over 1.5 kg. It is small. Thanks to miniaturization of the electronic systems its dimensions are 17.5 cm x 14.5 cm x 6.0 cm. Thanks to its small weight and dimensions as well as extremely effective batteries your work in the field will be a pleasure.

Easy to use

• The ultrasound scanner has all basic and the most important functions to detect animal pregnancy. It operates in B mode. Its rich intuitive menu navigation makes available all necessary options: freeze, gain and focus.

Reliability

• Having a spare battery which takes 2.5 h to be charged and can work extremely long, that is 6 h, all you need is a 5-second break to change the battery and continue working.

Diagnostics

• The DRAMINSKI SonoFarm mini was designed to detect pregnancy of small ruminants, pigs and large domestic animals. Depending on the probe, abdominal or rectal, you can confirm or exclude pregnancy of a pig, sheep, cow and goat. A multipurpose abdominal-rectal probe “Down Fire” is an excellent solution for specialists of insemination who work with different species.

Range of Probes

• The SonoFarm mini operates with three changeable mechanical probes with a wide viewing angle: rectal 180º, abdominal 90º and rectal-abdominal “Down Fire” 90º, which can be used for abdominal examination (sheep, pig, goat) and rectal examination (cow). Choosing the SonoFarm mini depending on the livestock, you choose a probe adjusted to your needs among the three available.

Durability

• An aluminum body of the scanner guarantees its extreme durability. More than that, the DRAMINSKI SonoFarm mini has a resistible, easy to clean plastic case which protects the device against unfavourable influence of high and low temperatures.

Warranty

• We know how reliable our ultrasound scanners are, that is why we give a 2-year warranty.

What’s included?

• the device with LCD screen and keyboard
• probes to choose from:
  – 5.0 MHz sector probe, abdominal
  – 5.0 MHz sector probe, rectal 180°
  – 5.0 MHz sector probe, Down Fire” type
• a set of belts: neck and waist belts
• external battery pack: Li-Ion 14.4V/3.1A
• dedicated battery pack charger
• transport case with foam filler
• Gel
• manual
