Product Description

The Nuffield 200 Ventilator has an enviable reputation as a reliable compact, powerful and easy to use anaesthesia ventilator and is primarily for use with a Bain Co-Axial Circuit.

The ventilator is equally suitable for use with an Ayre’s Tee Circuit for resuscitation, for High-Frequency Positive Pressure Ventilation with the use of a bronchoscope injector, and in a closed circuit system incorporating a CO2 absorber.

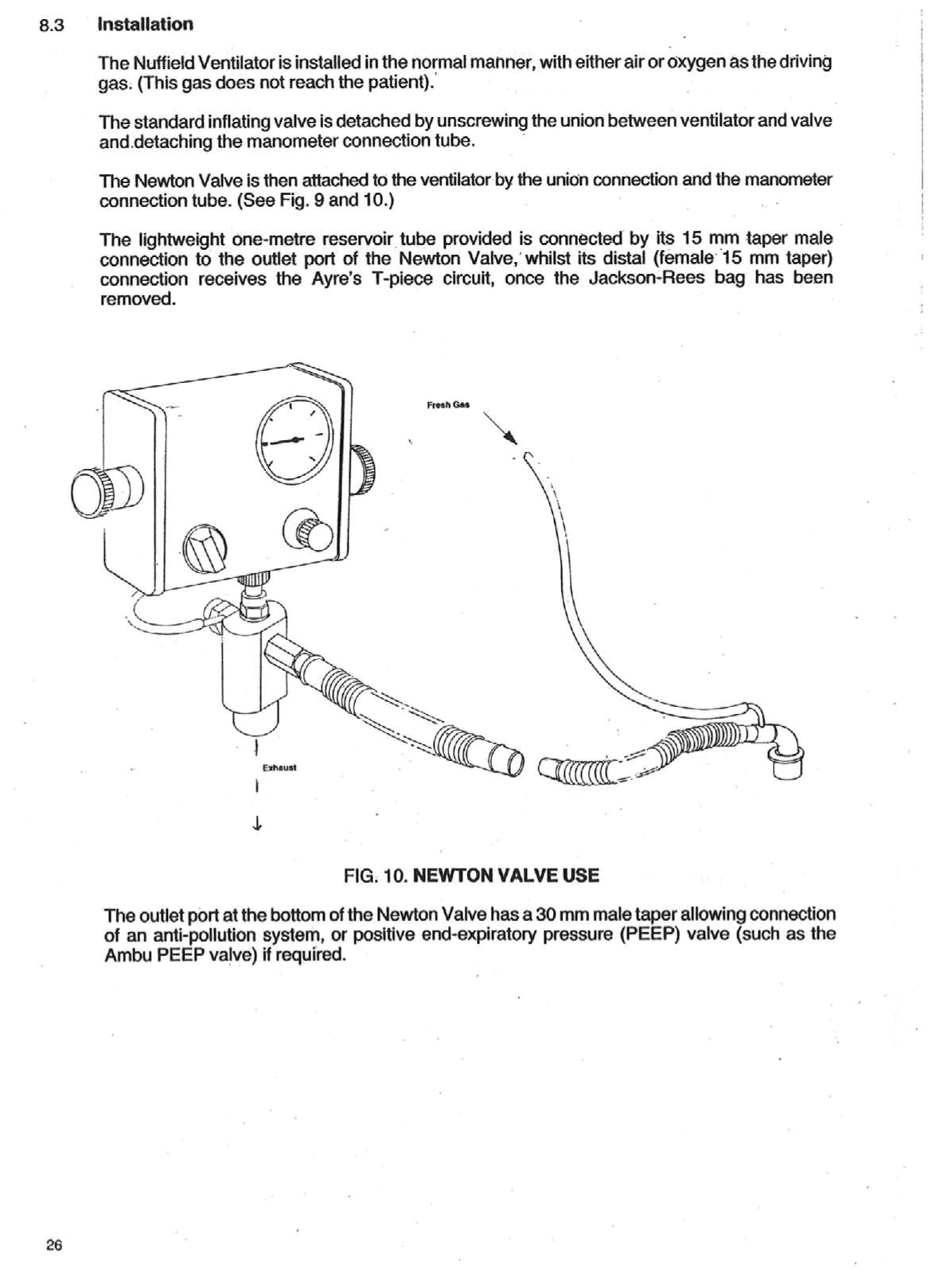

The time-cycled Penlon Nuffield 200 is powered by medical air or oxygen at 340 kPa- 410 kPa and has pre-set volume and flow rate for small and large animals. You can replace the standard patient valve with a Newton Valve and the ventilator range is further extended to include ventilation of small animals — a considerable achievement for a small, inexpensive ventilator.

The Nuffield 200 is a pneumatically driven time-cycled ventilator with preset volume and flow rate for adult or paediatric patients. The four simple controls provide a wide range of settings that enable a constant flow during the inspiratory phase and infinite variability of I:E settings. A suitable ventilator alarm and pollution control system can be attached to the ventilator if required.

The Penlon Series 200 requires a higher drive pressure to work. It will not work with an O2 concentrator due to their low-pressure output.

• Compact, easy to use
• Multi-use capabilities, including Co-Axial Circuit, Ayre’s Tee Circuit, Circle System and Resuscitation
• Standard Schrader probe oxygen hose fitting
• MRI compatible (optional extra, upon request)
• Main unit and valves can be sold separately – please ask

Specifications:

• Dimensions: 270 x 210 x 100 mm
• Weight: 3.5 kg
• Drive Gas: Medical air or oxygen at 340 kPa (50 lbf/in 2) – 410 kPa (60 lbf/in2)
• Tidal Volume: » 10 ml – 300 ml (Newton Valve) » 50 ml – 2000 ml (Standard Valve)
• Frequency (cycle/min): 10 – 85 (cycle/min)
• Frequency for HFPPV: 60 – 125 (cycle/min)
• Inspiratory Flow (liters per sec): 0.25 – 1.0 (independent and continuously variable)
• I:E Ratio: Continuously variable and dependent on chosen I:E settings
• Gas Consumption: Minute volume plus 0.1 liter/cycle to power fluid logic circuit
• Minute Volume: 1.0 – 30.0 liters
• Inspiratory: » Time: 0.2 – 2.0 sec. (independent and continuously variable) » Flow: 0.25 – 1.0 liters/sec (independent and continuously variable) » Pressure Relief: 60 cmH2O
• Expiratory: » Time: 0.5 – 4.0 sec. (independent and continuously variable) » Resistance: 2.5 cm H2O/liter
• Respiratory Manometer: Range -20 to +100 cmH 2O with zero adjust facility

We need to know:

• What fitting do you need to enable you to mount the ventilator your machine? (V-bracket, pole mount or rail)
• What length oxygen hose do you need? (Standard 1m)
• (Please note these extra’s are not included in the standard price)
