Product Description

This is a 400W Electrosurgery unit that with Shalya’s novel, innovative Radio frequency ablation scalpel technology (RFaST), Vessel sealing feature with reusable attachments that seals up to 7 mm of the vessel, and Saline Plasma Bipolar Resection.

Functions

• Vessel sealing
• Bipolar
• Monopolar

What is Vessel Sealing?

Vessel Sealing technology combines energy and the pressure delivered by the hand-piece when it is closed and activated. The walls of the vessel touch at the pressure point and the collagen and elastin in the vessel wall meld together creating a seal.

• Reliable and consistent permanent wall fusion
• Minimal thermal spread
• Reduced charring and sticking
• A 10mm hand-piece can seal vessels up to 7mm diameter
• Bloodless field
• No sutures so no foreign material
• Time-saving

Generator output and waveform is very different from that of Bipolar. It is technically challenging and expensive to produce a generator that will work at a low impedance which is what is needed with vessel sealing when the vessel is clamped. Until recently it has been difficult to purchase a quality vessel sealer with autoclave-able hand-pieces at a sensible price.

Bipolar                 Vessel sealing

Pressure                     Low                           High

Current                       Low                           High

Resistance                 High                           Low

Area of contact         Low                           High

Voltage                      High                          Low

Advantages of Shalya Vessel Sealing

• Alarms if you are not holding tissue properly, eg if the tissue is too thick or thin, or tips are short (not got all the tissue)
• Safety cut-out – blood/saline/clips are all detected and the unit STOPS
• Safety cut-out – if the unit detects the impedance is not reducing over time, thus reducing thermal spread

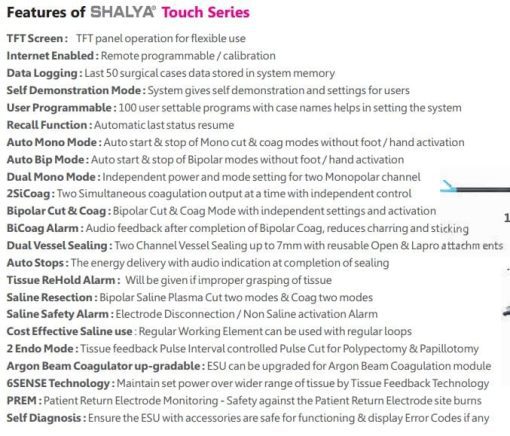

Product Features:

• Touch Screen LCD Interface: 5.7” Resistive Touch Screen for user-friendly interface with on-screen modes description facilitating surgeon to choose the best-suitable mode for the surgical applications.
• COMBO Generator Technology: Vessel Sealing System, Saline Plasma Bipolar Resection, High-Performance ESU (Diathermy) in Single Unit.
• Smart Unit: Surgical Monitoring and Automatic & Instant Response Technology ESU for consistent cutting & coagulation through all types of tissue.

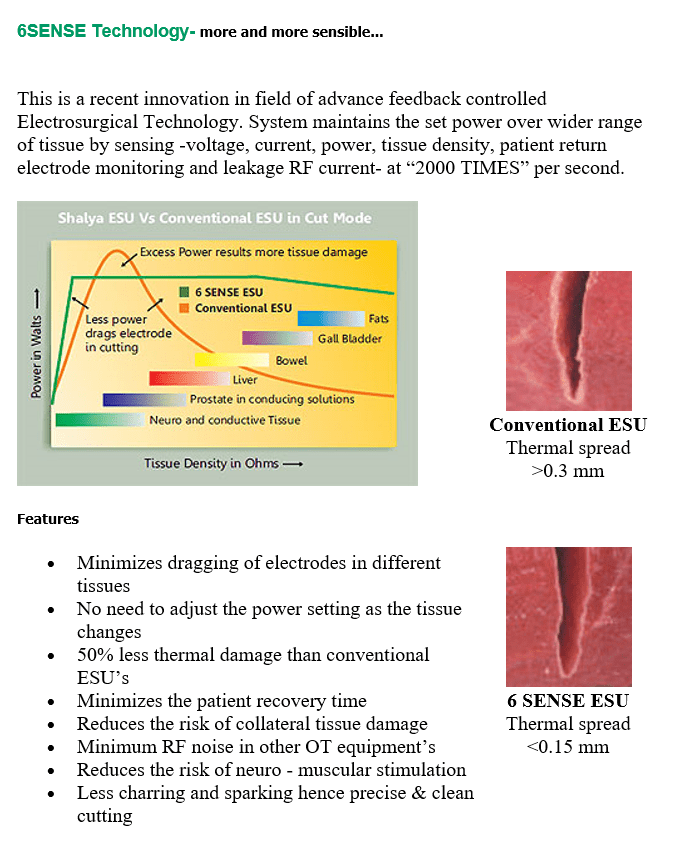

• 6SENSE Technology: Advance Microprocessor controlled Digital tissue impedance feedback system with the sense the change in Voltage, Current, Power, Tissue Density, Return Electrode Contact quality & leakage RF current.
• Fully Microprocessor controlled: To achieve a high degree of clinical precision.
• User Programmable: 100 user settable programs with case names
• Recall Function: Automatic last status recall
• Dual Mono Mode (Optional): Independent power and mode setting for two Monopolar channel
• 2SiCoag (Optional): Two Simultaneous coagulation output at a time with independent control.
• Bipolar Cut & Coag: Bipolar Cut & Coag Mode with independent settings and activation.
• BiCoag Alarm: Audio feedback after completion of Bipolar Coag, reduces charring and sticking.
• Dual Vessel Sealing:  Vessel Sealing up to 7mm with reusable Open & Lapro attachments
• Auto Stop: Energy delivery with an audio indication at the completion of sealing.
• Tissue ReHold alarm is given if tissue is not grasped correctly
• Saline Resection: Bipolar Saline Plasma Cut two modes & Coag two modes.
• Saline Safety Alarm: Electrode Disconnection / Non-Saline activation Alarm.
• 2 Endo Mode: Tissue feedback Pulse Interval controlled Pulse Cut for Polypectomy & Papillotomy.
• Argon Beam Coagulator up-gradable: ESU can be upgraded for Argon Beam Coagulation module.
• 6SENSE Technology: Maintains the set power over a wide range of tissue by Tissue Feedback Technology.
• PREM : Patient Return Electrode Monitoring – Safety against Patient Return Electrode site burns.
• Self Diagnosis: Ensures the ESU and accessories are safe, error codes will display if problems

What’s Included:

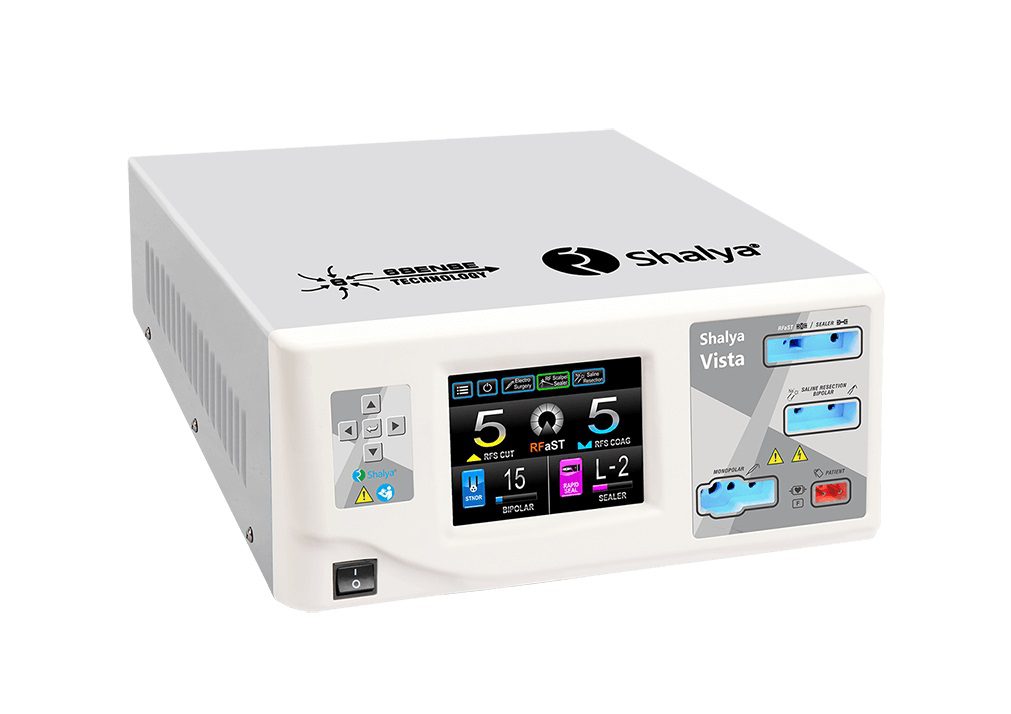

• Shalya Vista-ve Electrosurgical Unit with Vessel Sealing System
• User manual CD
• Mains Cable
• E201 : Footswitch, Single Paddle
• E202 : Footswitch, Double Paddle
• E203 : Footswitch, Double Paddle, Small

Extras

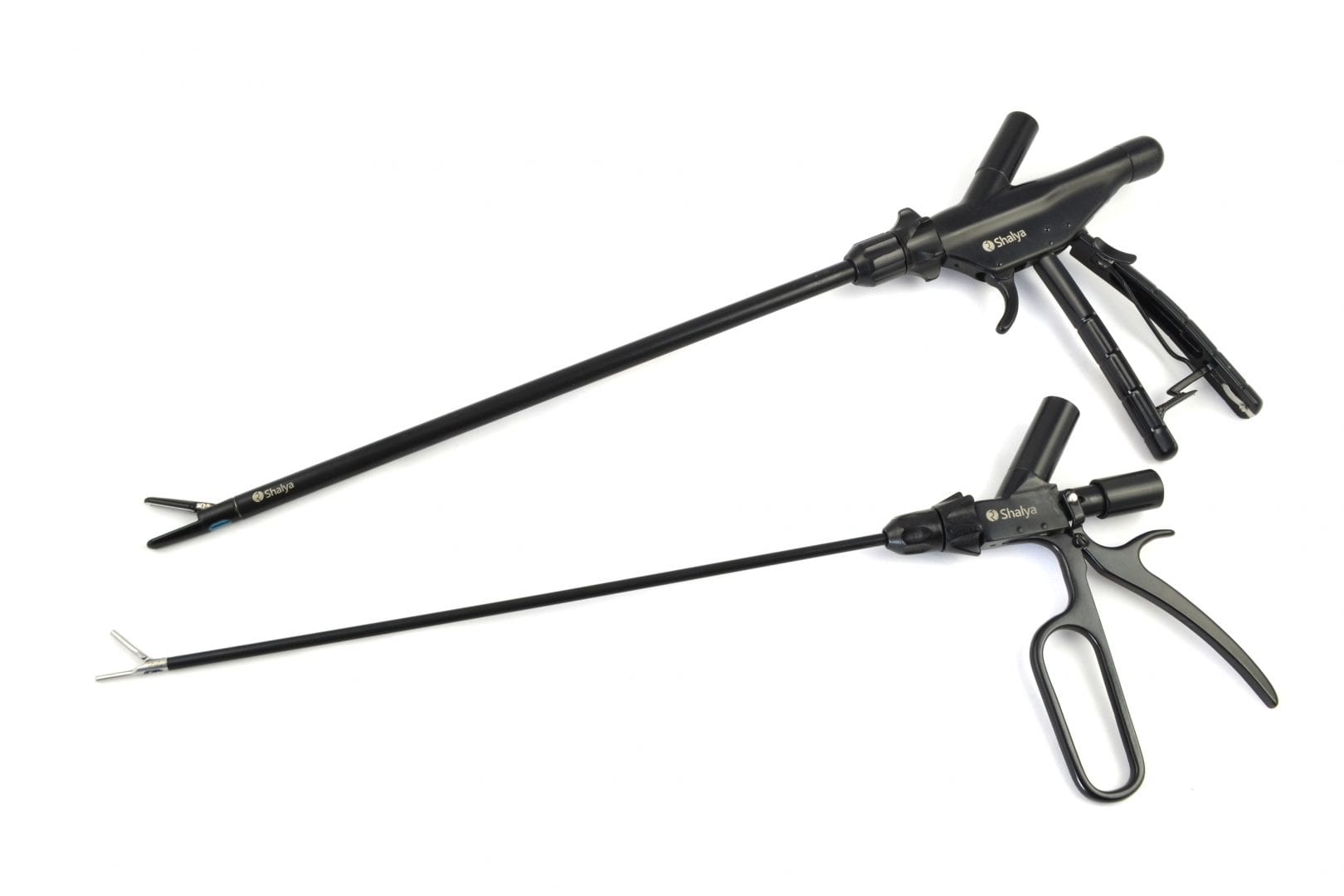

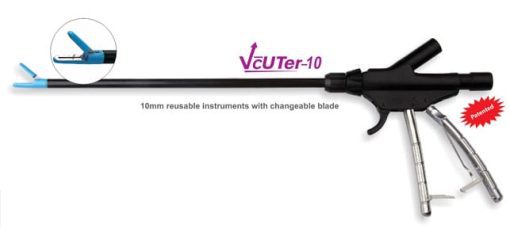

• 10mm Vcuter Shalya Sealing/Cutting hand-piece (18cm or 36cm working length) View Item
• 5mm VSeal Shalya Bipolar Cut/COAG hand-piece (18cm or 36cm working length) View Item
• Bipolar cable for hand-piece (E119) View Item
• 5 mm Bissinger sealing/cutting hand-piece View Item

Main Shalya base units come with one year’s warranty; all Shalya accessories have a six-month warranty.

Q&A:

Can the Vista VE be used with solid plates? Yes, you can use solid plate both single & dual area with Vista VE.

Can we use pre-gelled disposable solid plates? Yes, you can use pre-gelled disposable plates but you must ensure that the body part is neatly shaved before using a solid plate.

What settings are commonly used? ESU – 15W bipolar, 25W cut-coagulation and 40W cut are commonly used settings on a good generator. SEALING – Use level 2 optimised programme – cut 50W and coag 25W on both VesSeal and Vista VE
