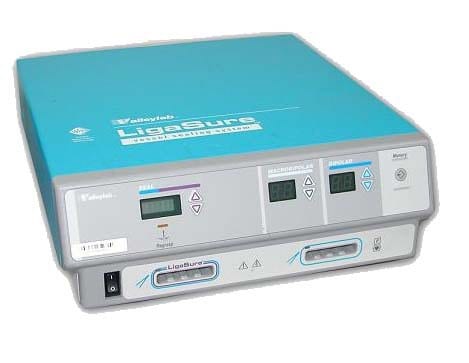

Valleylab Ligasure Vessel Sealing/Bipolar Diathermy Unit

£3,100.00 (excl. VAT)£4,350.00 (excl. VAT)

Vessel sealing and Bipolar functions




All of our Pre-owned Equipment comes with 90 days warranty and will be serviced/checked prior to delivery.

Product Description

The LigaSure™ vessel sealing system gives you something no other electrosurgical tool can – permanent vessel occlusion. The LigaSure™ system’s revolutionary technology replaces almost all other hemostatic tools because it doesn’t just ligate vessels, it fuses vessel walls to create a permanent seal.

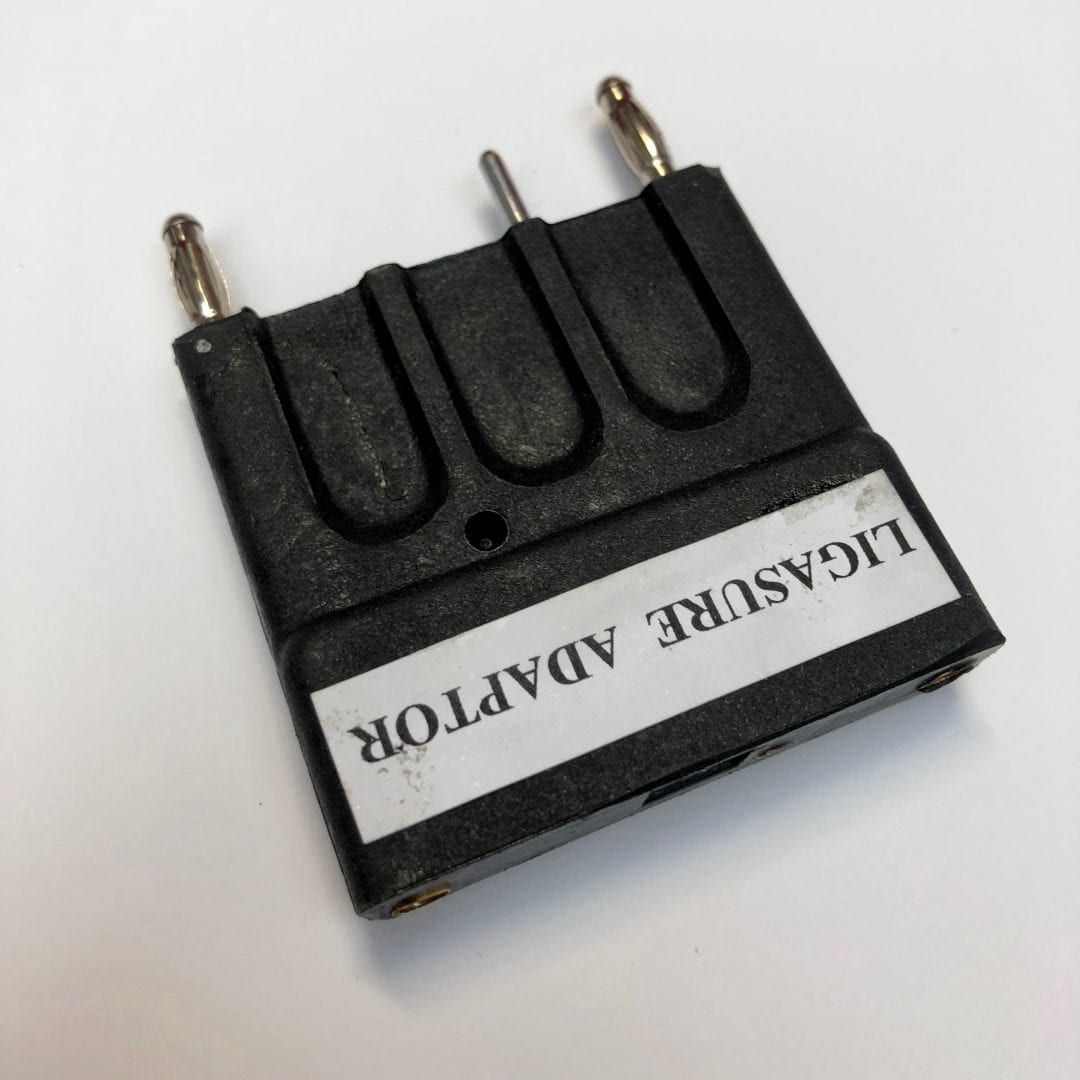

If you decide on a pre-owned Ligasure you can use Covidien LigaSure Handpiece with hand-switching or with an adaptor you can also use our autoclavable hand-pieces (Vcuter or VSeal) but these are not hand-switching.

  • Two modes are available: Bipolar – for most applications. The system provides low voltage to prevent sparking. The power remains constant over a specific range of tissue impedance, allowing a consistent tissue effect. Macrobipolar – for bipolar cutting or rapid coagulation. The system provides higher voltage and greater power than with the bipolar mode.
  • Vessel sealing re-grasp indicator alerts you to situations where a full seal cycle has not been achieved
  • Instant Response technology
  • Memory button to recall the most recently used intensity and power settings
  • Handswitch or footswitch activation
  • Output configuration: Isolated output
  • Cooling: Natural convection=
  • Display: Two (2) digital seven-segment displays: 1.9 cm (0.75 in) each
  • Mounting: A Valleylab car or stable flat surface
  • Ambient temperature range: 10° to 40° C (50° to 104° F)
  • Relative humidity: 15% to 90%, noncondensing
  • Atmospheric pressure: 700 to 1060 millibars
  • Warm-up time: If transported or stored at temperatures outside the operating temperature range, allow one hour for the generator to reach room temperature before using.
  • The stated audio level is for the activation tone and alarm tone at a distance of one meter. Alarm tones meet the requirements of IEC 60601-2-2
  • Width: 38.6 cm x Depth: 40.6 cm x Height: 12.7 cm not including feet
  • Weight: 5.9 Kg (13 lbs) typical

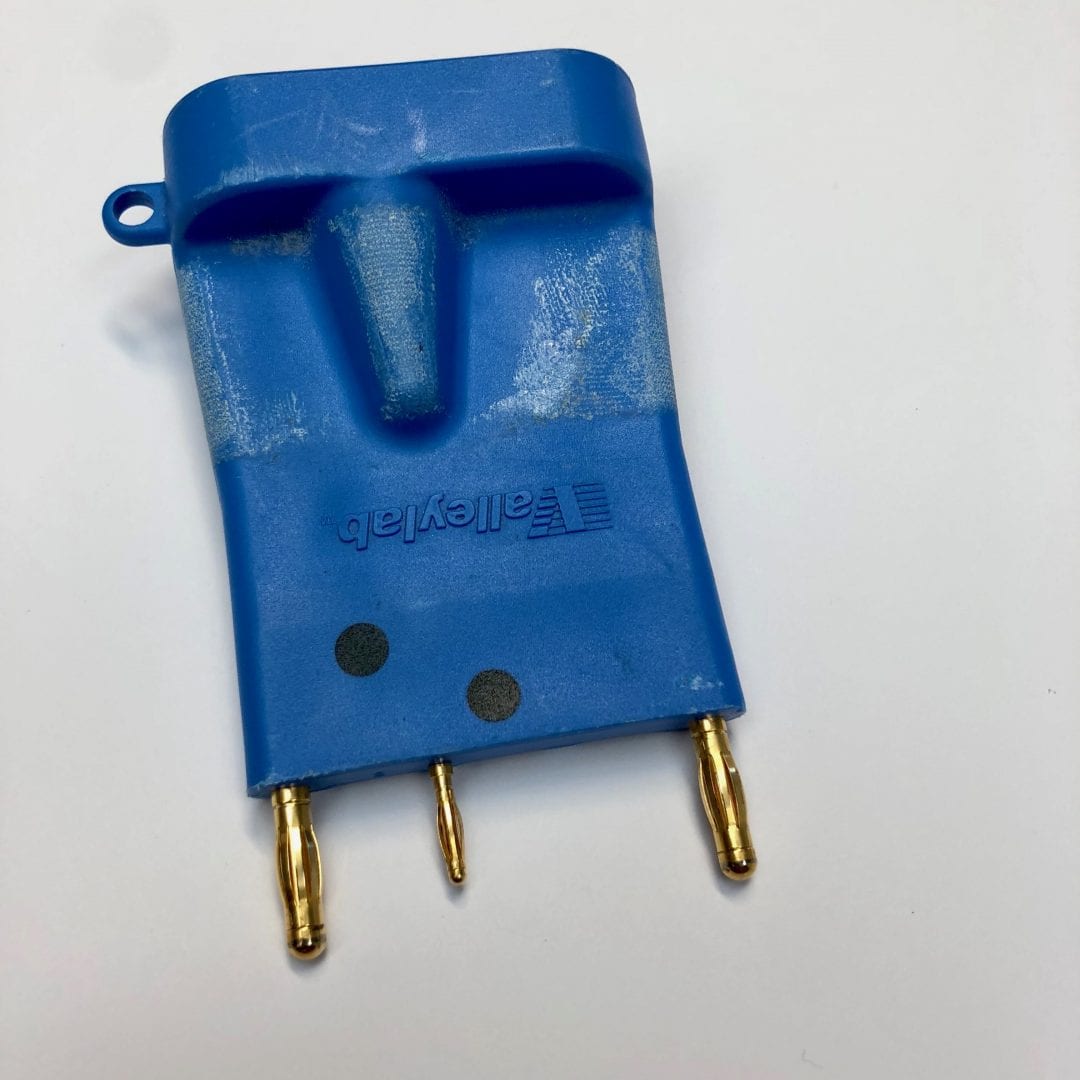

Note. The adaptors are not included and must be ordered as an extra/add-on

Looking for a new Ligasure, check out the Shalya VesSeal (1 years warranty and autoclavable handpieces)

Additional information

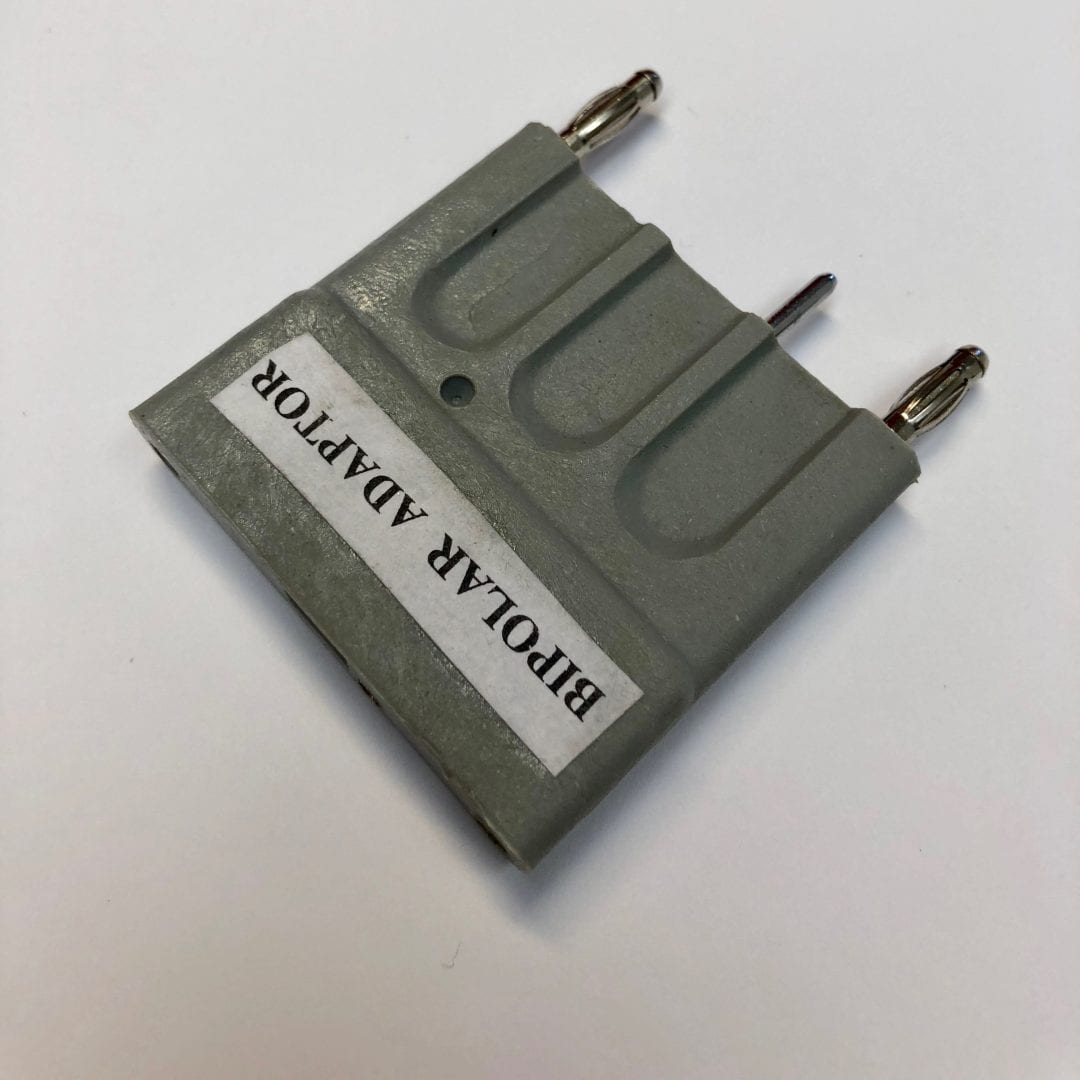

Base Unit Only, Base Unit + Sealing Foot-pedal, Base Unit + LS1037, Base Unit + LS1500, Base Unit + LS1020, Base Unit + LS1520, Base Unit + LS1200, Base Unit – as new, never used & in original box, c/w 2 sets of foot pedals & bipolar adaptor
