Arthroscopy Pump

Arthroscopy Pump
  • Hidden
  • This field is for validation purposes and should be left unchanged.

Systems Includes:

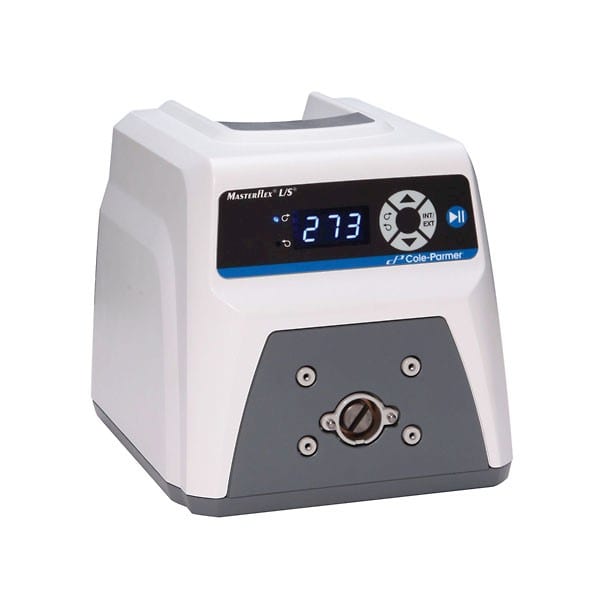

  • L/S Precision Variable-Speed ConsoleDrive w/ Remote I/O; 600 rpm
    • Easy-to-use drives offer precise speed control and digital display of rpm—ideal for metering applications
      • Flow rate 0.06 to 3400 mL/min
      • Max RPM (rpm) 600
      • Three-digit LED display shows motor rpm — confirm speed setting at a glance
      • Reversible motor—purge tubing before or after pumping; pump fluid in either direction LED indicators confirm the motor direction
      • Powerful motors let you stack 2 pump heads for increased flow rates and for multichannel applications
      • Separate speed and power (on/off) control — maintain speed setting while turning the pump on/off
      • Stackable, splash-resistant ABS plastic housing; IP33 rated
      • Remote control capabilities via a DB9 female connector on the back of drive
      • Speed control input: 4 to 20 mA or 0 to 10 VDC
      • Pump direction (CW/CCW) via open collector or contact closure
      • Start/stop via open collector or contact closure
      • Membrane keypad for easy up-front control of speed, direction, and start/stop

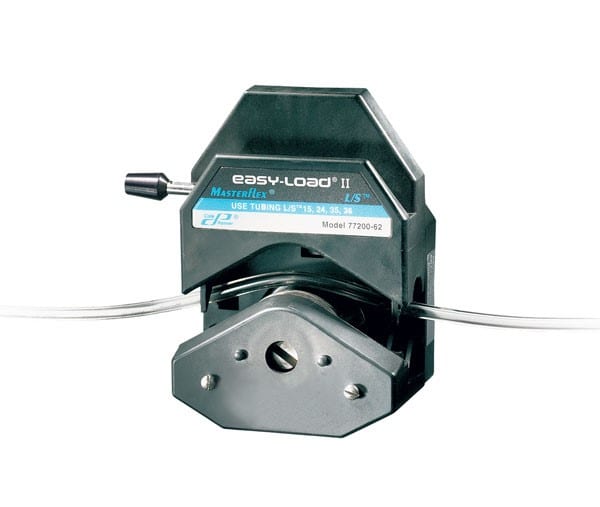

  • L/S Easy-Load II Head for High-Performance Tubing, PPS/SS
      • Automatic retention holds tubing securely in place with no manual adjustment—just load the tubing and start the pump
      • Improved occlusion bed geometry lengthens tubing life.
      • Polyphenylene sulfide (PPS) housing with either stainless steel (SS) or cold-rolled steel (CRS) rotor—choose CRS for the economy or SS for greater durability and chemical resistance.
      • Open Head Sensor – No
      • A Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation.
  • Platinum-cured silicone tubing, L/S 15, 25 ft.
  • Male Luer with lock ring x 3/16″ hose barb, nylon, 25/pk
  • Female Luer x 3/16″ hose barb adapter, PP, 25/pk

This system offers a flow range of 10 to 1000ml/min and the LED display shows the RPM to allow for easy adjustment of the flow rate. See attached for further details. The system should achieve a flow rate per revolution of 1.66ml (the flow rate that can be achieved at 600rpm is 1000ml/min).
