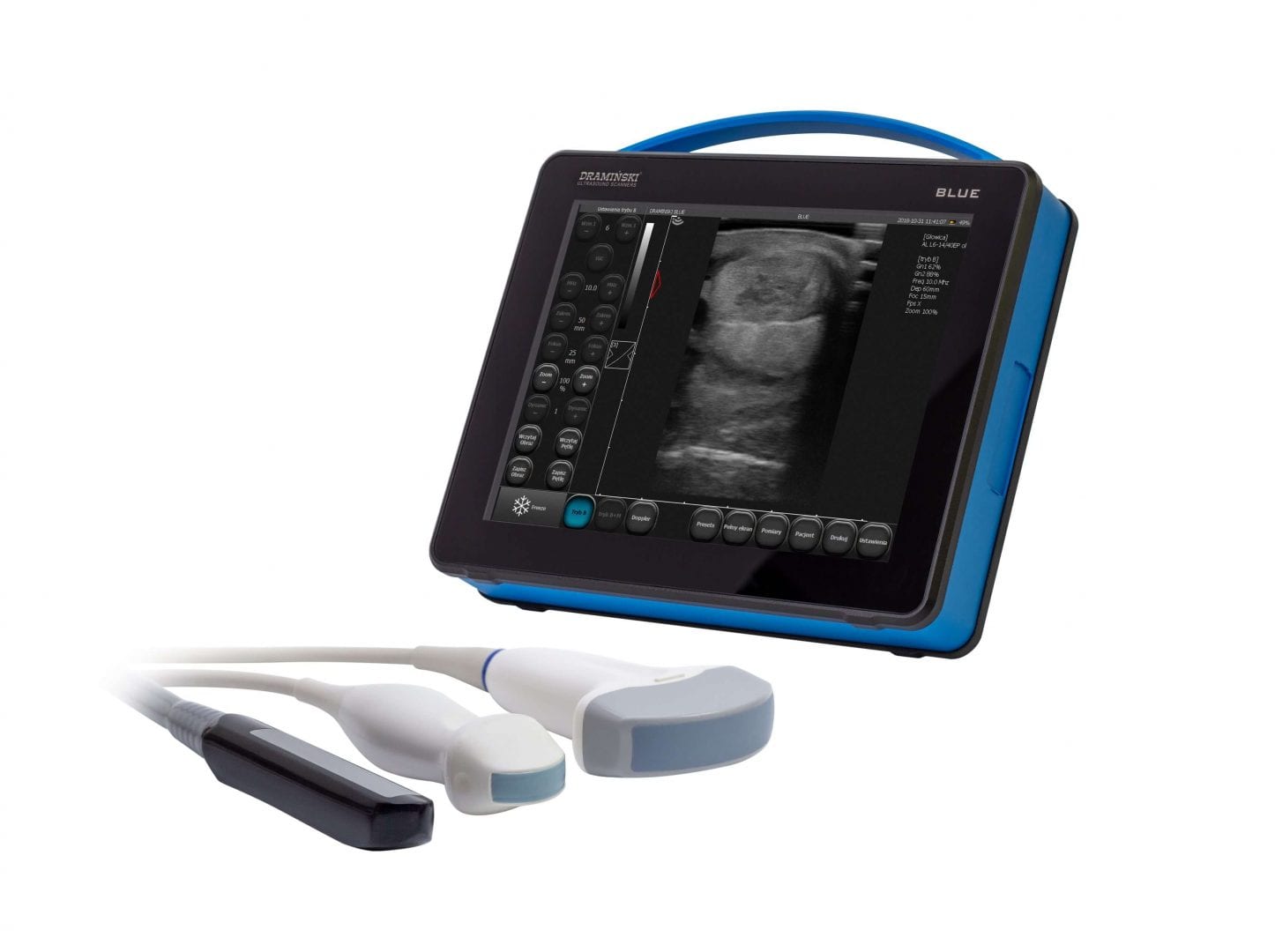

Draminski BLUE

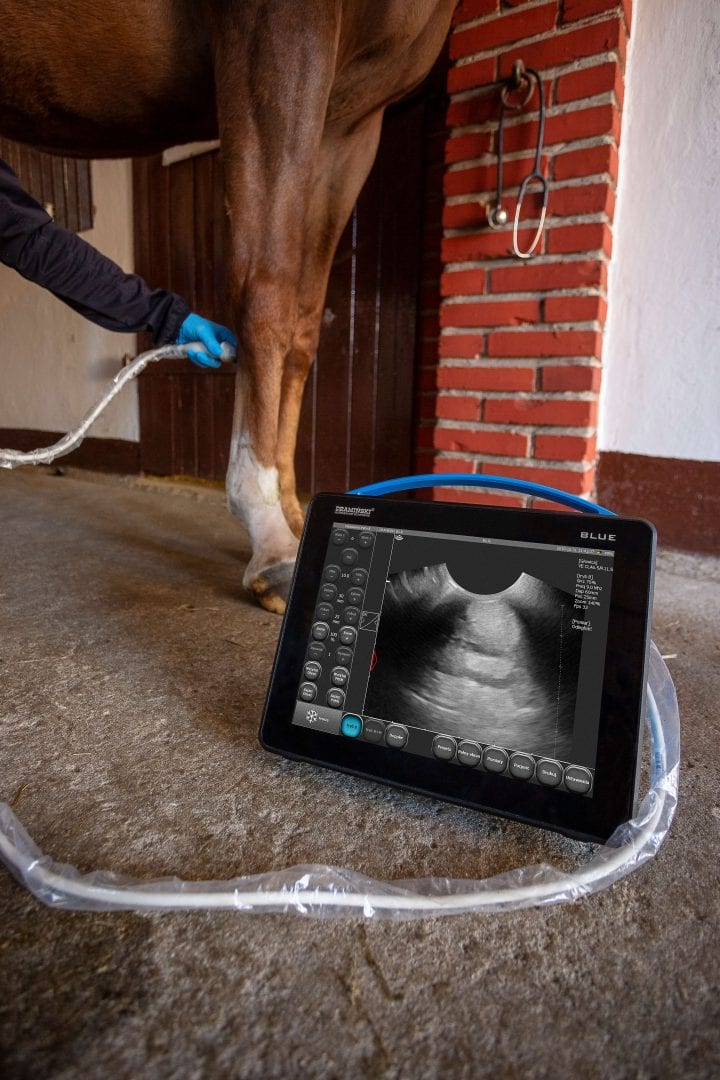

Modern ultrasound scanner with excellent Doppler ultrasonography and high quality imaging. Designed to diagnose small animals and horses.
  • Hidden
Product Description

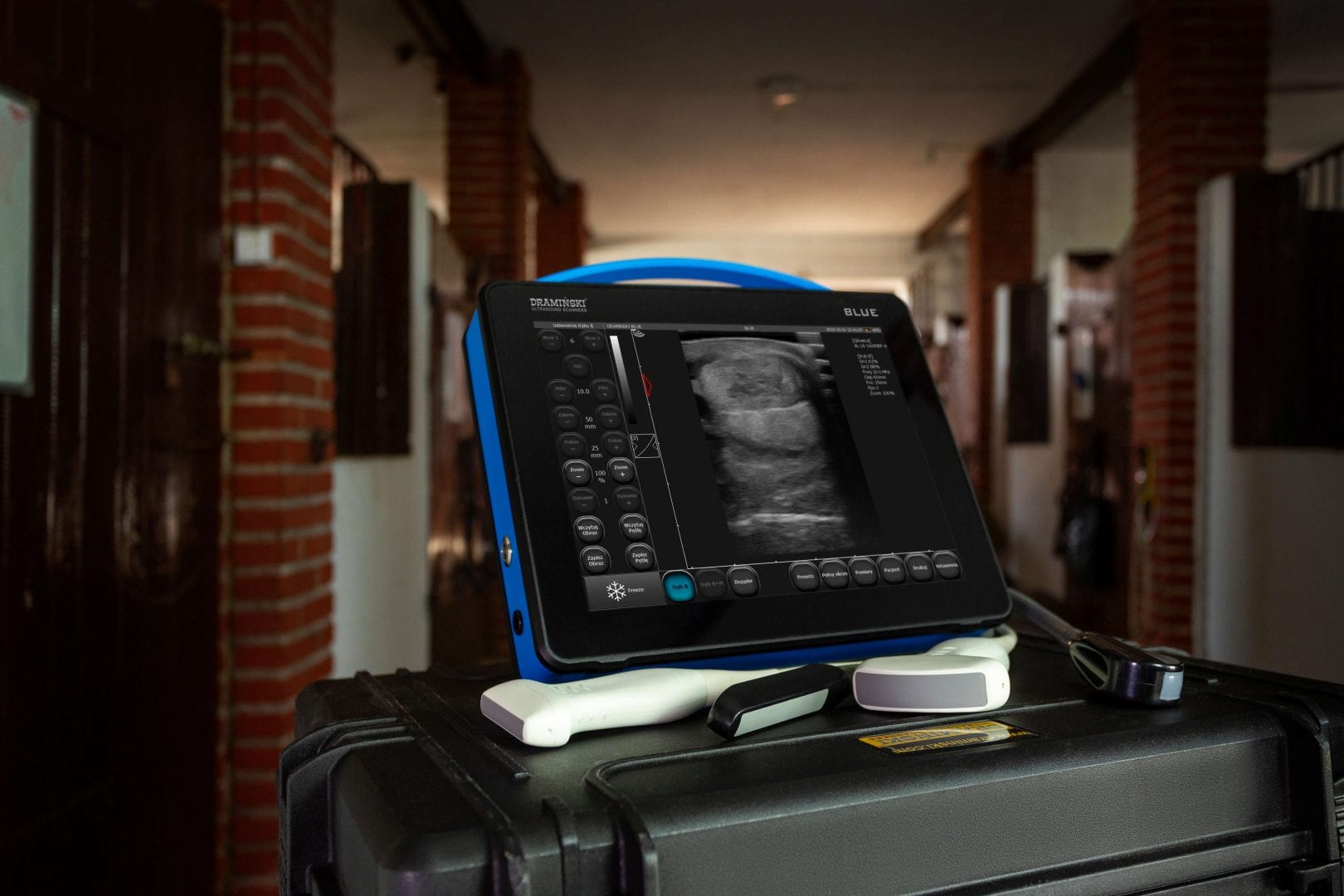

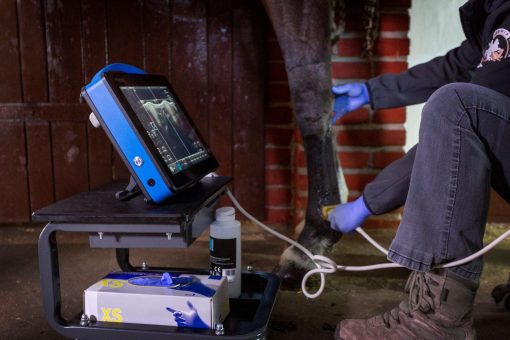

DRAMIŃSKI BLUE is a veterinary diagnostic ultrasound scanner that provides surprisingly detailed images. Enjoy the sensitive touch screen. The scanner is second to none after the first examination. It is a modern ultrasound scanner with excellent Doppler ultrasonography and high-quality imaging. Designed to diagnose small animals and horses.

Based on opinions from leading veterinary specialists we have put together the perfect probe combination packages for general practice vets, small animal vets and equine vets.

Product Features

Technologies of the future

  • LuciD™ – a system that enhances contrast, sharpness and tissue differentiation making images readable and easy to interpret.
  • D-Curve™ distinguishes between slight echogenicity differences – a transfer curve ideally suited to the human eye perception.
  • Vi-Probe™ is a unique technology that provides phased array image type on the convex probe and convex image on the linear probe. BLUE provides enhanced vision, even through a small acoustic window.

Standby and Operating Time

  • The veterinary ultrasound scanner is ready to operate after 25 seconds. The built-in battery provides up to 2.5-h convenient operation with no power supply connection needed.

Easy Operation

  • Active fields allow quick standard parameter setting. Measure the distance immediately after freezing the image – no additional menu needed. Entering a patient’s data before an ultrasound examination is not necessary. This can be done while saving the first image.

Multiple Doppler Imaging Modes

  • The veterinary scanner has three Doppler imaging modes: Color Doppler, Power Doppler, Pulse Wave Doppler. The technology allows examining blood flow in blood vessels.

Replaceable Probe System

  • If the probe needs to be replaced during an ultrasound examination, the system will detect the new one automatically.

Probes available:

  • Convex R60 / 3,5 MHz
  • Convex R50 / 5 MHz
  • Linear L40 / 10 MHz
  • Microconvex R15 / 6,5 MHz
  • P-probe R20 / 6,5 MHz
  • Linear rectal probe L60 / 7 MHz
  • OPU R11 / 6,5 MHz
  • Click Here for Probe Specifications

Multitasking

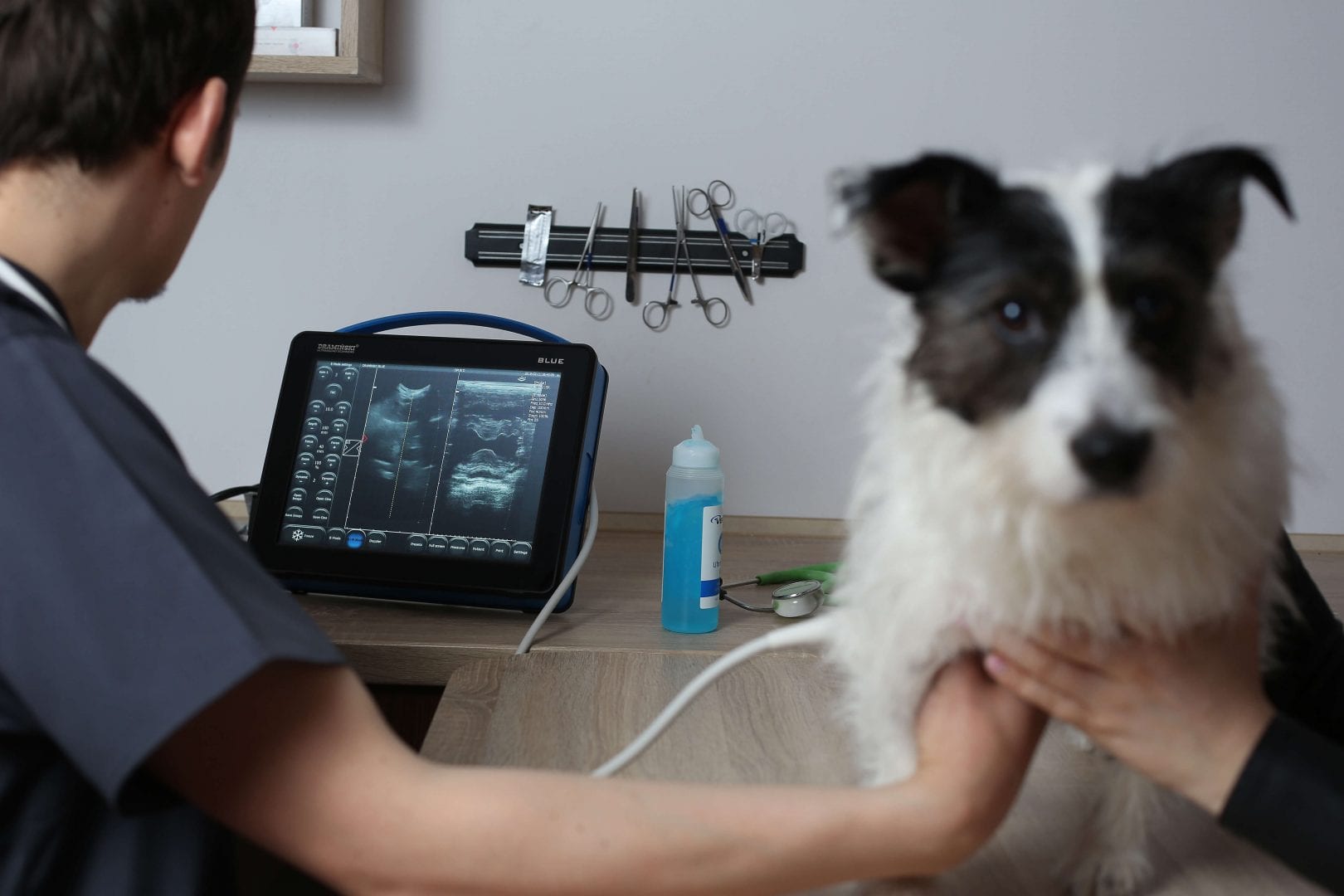

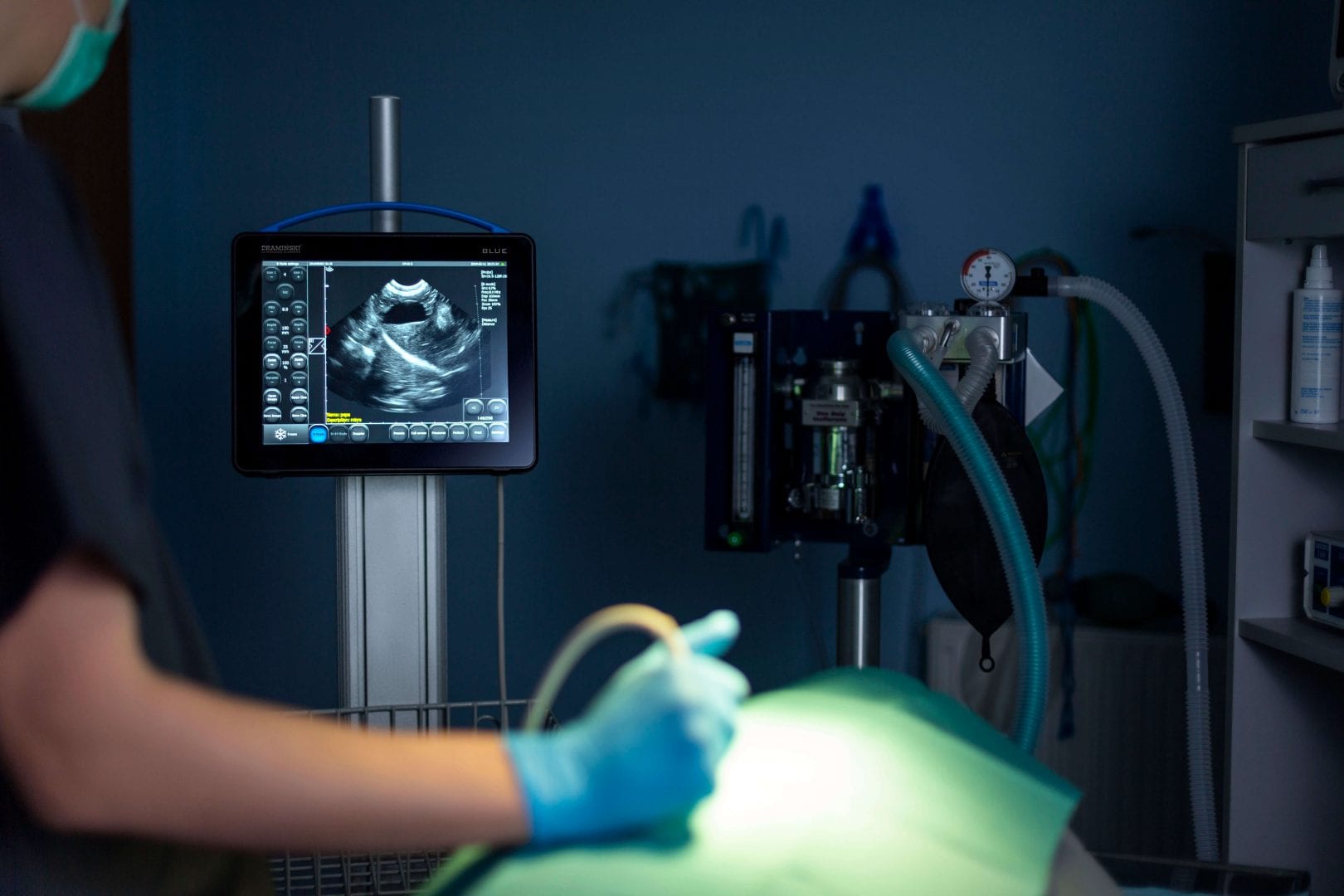

  • Whether it is a quick emergency screening of a patient or an accurate ultrasound diagnostics in orthopaedic surgery, BLUE will always be there, ready for new challenges.

Lightweight Design

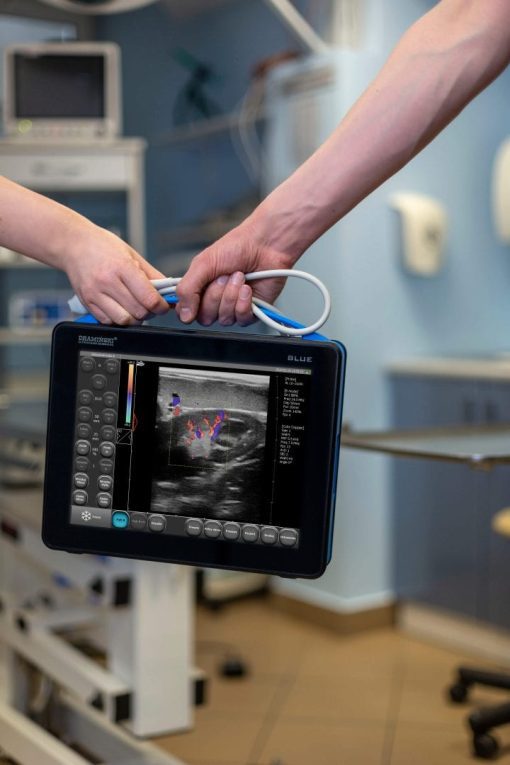

  • We have applied solutions that allow using the latest technology in the veterinary ultrasound scanner weighing 4 kg only.

Large Touch Screen

  • The 12″ LED LCD display guarantees a successful diagnosis. The features are controlled via a sensitive touch panel. Quick and easy operation.

Warranty

  • The DRAMIŃSKI BLUE veterinary ultrasound scanner has a two-year warranty.
What’s Included
  • Ultrasound scanner with built-in battery
  • Stand
  • Power supply
  • User manual with warranty card
  • Carrying case

See a full review here – Draminski Blue – First Opinion Veterinary Ultrasound (fovu.co.uk)

Technical Data
Imaging modes B Mode,
B+B Mode,
4B Mode,
B+M Mode,
Color Doppler,
Power Doppler,
Pulse Wave Doppler
Operating frequency 1-14 MHz (probe type dependant)
Grayscale 256 degrees, D-Curve™ (grayscale curve adapted to the human eye perception)
Image analysis and processing LuciD™ (contrast, sharpness and tissue differentiation enhancement system)
Ultrasound control Vi-Probe™ virtual convex probe on linear probes, virtual sector probe on convex probes
Frame memory and cine loop viewing 100 GB
Data record Images and cine loop viewing with description, patient data and date
Data transmission to a data storage device Via USB interface
Exported file format PNG for images, AVI, MP4, MOV for cine loop viewing
Number of probe ports One port, automatic probe recognition
External ports 2 x USB 3.0, 2 x LAN, 1 x HDMI
Monitor 12″ LED LCD display
Feature control Capacitive touch panel
Standby time approx. 25 s
Continuous operation time with battery supply approx. 2 hours 30 min.
Package charging time approx. 4 hours.

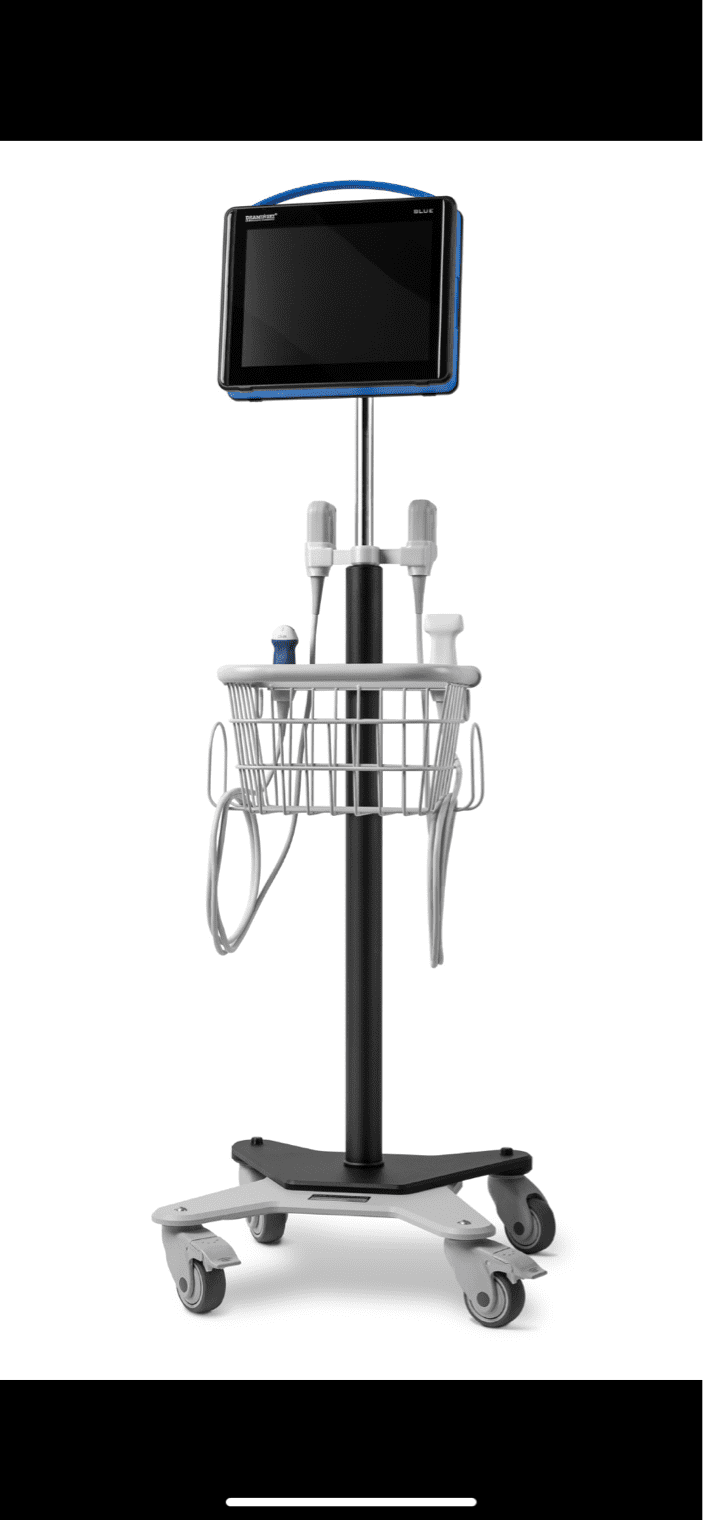

Accessories Wheel stand

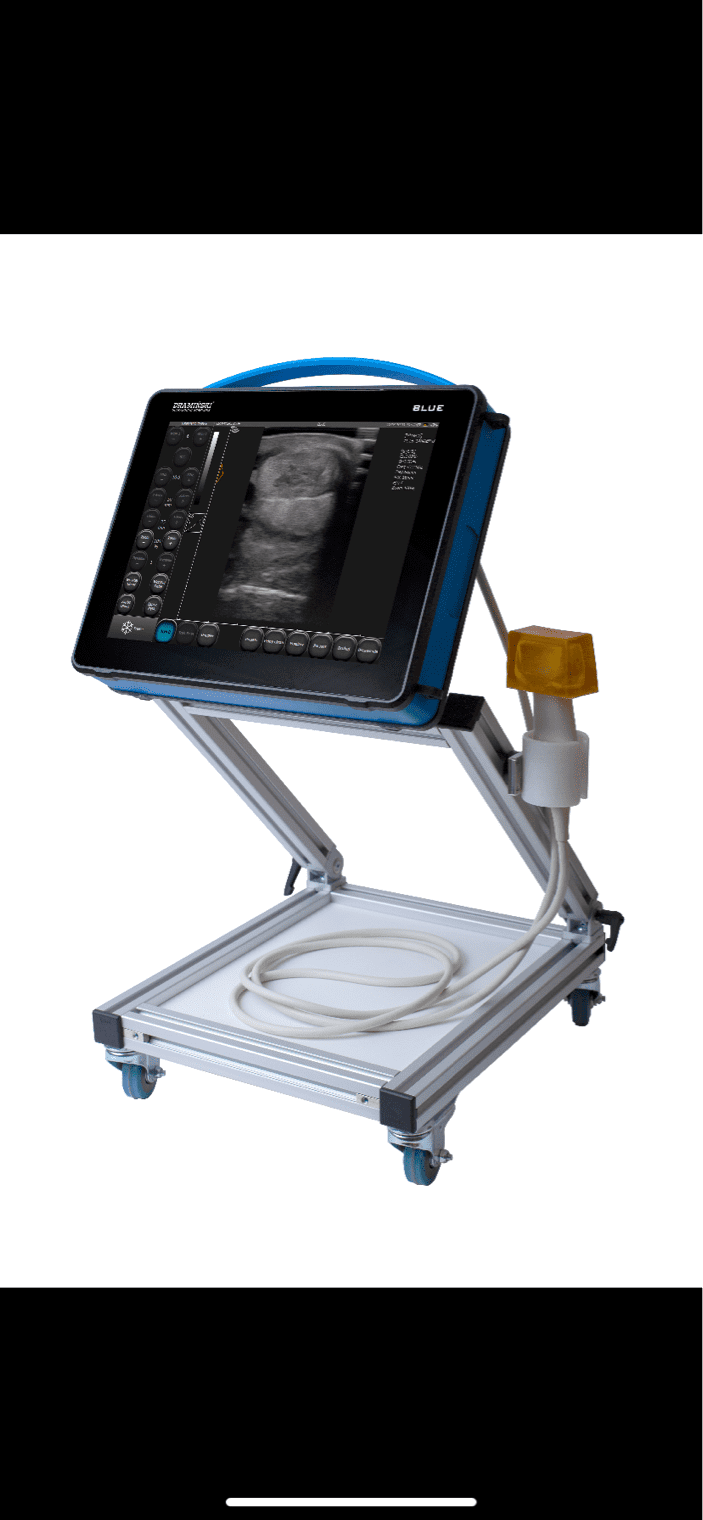

Caster stand (low)
Gel spacer
Operating temperature From -15°C to +45°C
Recommended storage temperature From 0°C to + 45°C
Options:Blue Sport Horse Vet, Blue Small Animal Vet

1 review for Draminski BLUE

  1. Andy Thorp

    “I had access to the Draminski Blue for just over a week, and as well as using it with my dog Pippi I also used it in a few cases where I was able to find some enlarged adrenal glands, hyperechoic liver and sludge in a couple of gallbladders. The image quality was good, and I was really impressed that power Doppler was available on a machine at this price. I found navigating the machine really easy – everything is so well labelled – it’s hard to go wrong! The machine is very easy to move around with it’s inbuilt handle and sets up very quickly – it really maximises space versus screen size well. The only thing I did struggle slightly with was taking accurate measurements – touch screen is harder to be precise than a mouse or trackball. Draminiski have thought of this as when you are taking measurements you can hold your finger on the screen and this zooms in on a circle – allowing you to place the marker more accurately. I think with a bit of practice I would easily get used to this function.”
    Camilla Edwards- First Opinion Veterinary Ultrasound
