Description
The units are available on trial for 1 week, thereafter £200 + VAT per week hire charge (which is then deducted from the purchase price if you decide to keep it).
Product Description

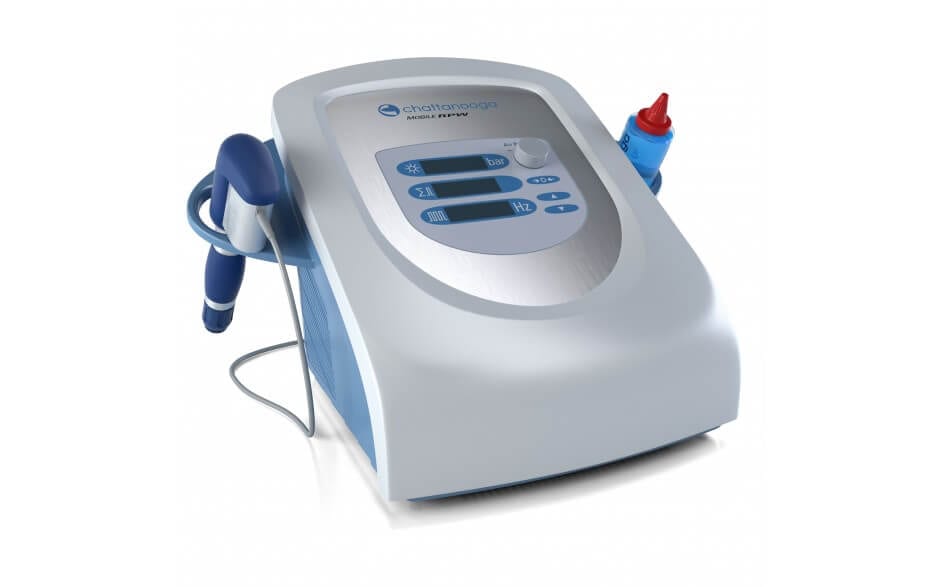

Chattanooga’s Radial Pressure Wave technology is now mobile. The Mobile RPW is compact and light enough to be easily carried while also delivering a host of features and benefits.
When the need for a powerful yet portable Radial Pressure Wave device is called upon within a clinic or the athletic sports field, the Chattanooga Mobile RPW is the ideal choice. Its lightweight and compact design, together with its quiet, the built-in compressor makes it perfect for portable use. User friendliness is at the heart of the Mobile RPW’s design. The simple, ergonomically laid out controls enable all of the key parameters to be easily changed, while an illuminated LED display clearly indicates pressure, frequency and number of pulses. Initiation of the pulses is via a trigger mechanism on the handpiece
Shockwave therapy is a non-invasive treatment; the probe is applied directly to the skin over the affected area. Due to the local sensation of slight discomfort and vibrations from the compressor, most patients are lightly sedated to minimise distress and for operator/equipment safety reasons. The treatment works in two ways; desensitisation of local nerve ends provides effective and quite prompt pain relief and reduction in muscle spasms, while also stimulating tissue healing by promoting blood flow to the affected area.
This Radial Pressure Wave clinical unit is ideally suited to the following applications:- Orthopaedics / Rheumatology / Physical Medicine / Physiotherapy / Sport Clubs / Acupuncture / Aesthetic / Veterinary / Podiatrists / Chiropractors. Applications include, but are not limited to Plantar fasciitis, Heel spurs, Achillodynia, Hip trochanteric pathology, Jumper’s Knee, Shin Splints, Humeral epicondylitis, Soft tissue activation, Cellulite reduction
The primary indications for its use in the equine population include:
- Primary back injuries: These include muscle and ligament strains and sprains, kissing spines (impinging dorsal spinous processes) and sacroiliac injuries.
- Back pain/muscle spasm secondary to primary lameness.
- Ligament injuries: The suspensory ligament is the most frequently injured and treated ligament, particularly injuries involving the top portion of the ligament where it attaches to the cannon bone just below the knee and hock (proximal suspensory desmitis). Forelimb suspensory ligaments and to a lesser extent hindlimb injuries can respond well to treatment. We have also successfully treated damaged check ligaments, annular ligaments, patellar ligaments (stifle) and collateral joint ligaments (mainly pastern and coffin joints).
- Tendon injuries: Injuries to the lower leg, primarily involving the superficial and deep digital flexor tendons are treated with shockwave therapy in a similar manner to ligament injuries. Improved quality of healing in terms of the ultrasonographic appearance of the tendons can be seen, although a prolonged period of graduated exercise is still essential to minimise the risk of recurrence.
Veterinary Practice Application Tips
- Depending on the condition treated. 1500 –2000 shots per treatment.
- 3-6 Treatments, once weekly
- The patient needs rest after the 1st treatment
- Pressure and frequency settings
- Use 3-4 Bar (Provided no patient discomfort)
- Chronic conditions respond best using 20MHz
- Acute condition respond best using 15MHz
- Maintenance
- The user must clean the barrel once a week with a brush
Product Overview
- Both the mobile and floor standing system use Storz hand-pieces, Storz manufacture high-quality projectiles.
- The projectile/guide tube needs replacing every 1 million shots. So for a vet, this is likely to be every 3 years or so. It comes with a spare set so you are good to go for 2 million shots. These can be changed by the user and the cost of the parts is £230 + VAT
- Annual servicing is done on-site at a cost of £160 + Filter £65 + VAT.
Standard Accessories included with the unit:

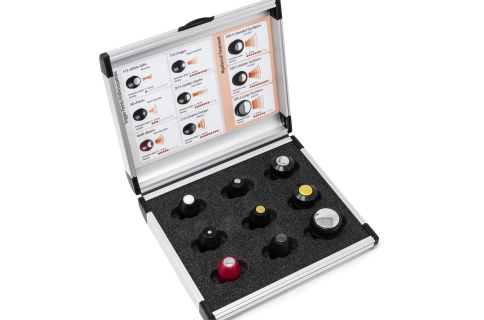

D-ACTOR Handpiece Applicator, R15 15mm ESWT Transmitter, D20-S D-ACTOR 20mm Transmitter, Conductor Transmission Gel, Mains lead, Operating manual and Revision Kit including Sealing set, Guide tube (2x), Projectile (2x).
Technical Specification
- Mains Power: 230 V ~
- 50 Hz Power Consumption: 150VA
- Compressed Air Output: 1-5 bar Pulse
- Width: Approx. 6 – 12 ms
- Pulse Frequency: 1 – 15 Hz Product
- Dimensions: 32cm x32cm x 21cm
- Warranty: Main unit 3 years, Handpiece 3 million pulses or 1 year
The 2 advantages of the floor standing version are that it has digital functionality and the machine has the facility for presets. However, Vets doing ambulatory work need the smaller unit.
