Draminski iScan mini

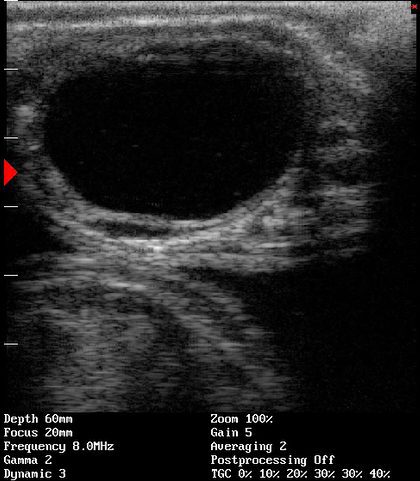

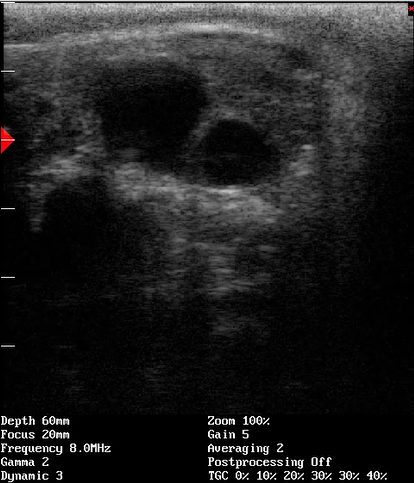

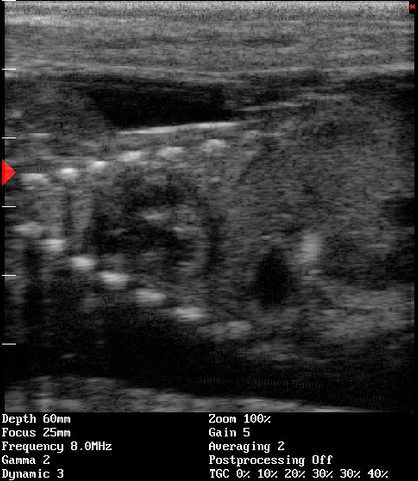

Pregnancy confirmation, determination of age and sex of the foetus, diagnosis of pathologies of both ovaries and uterus, lung examination in calves and many more, all these examinations may now be simpler and faster with iScan mini.
  • Hidden
SKU: N/A

Product Description

The iScan mini is the answer to the voice of veterinarians working in the field. Simple to use, it has a brilliant image and is not much bigger than your phone! It is an indispensable tool in the work of every veterinarian dealing with the reproduction of farm animals. Light and handy, it was created to make your work easier

Product Features

Small and Tough

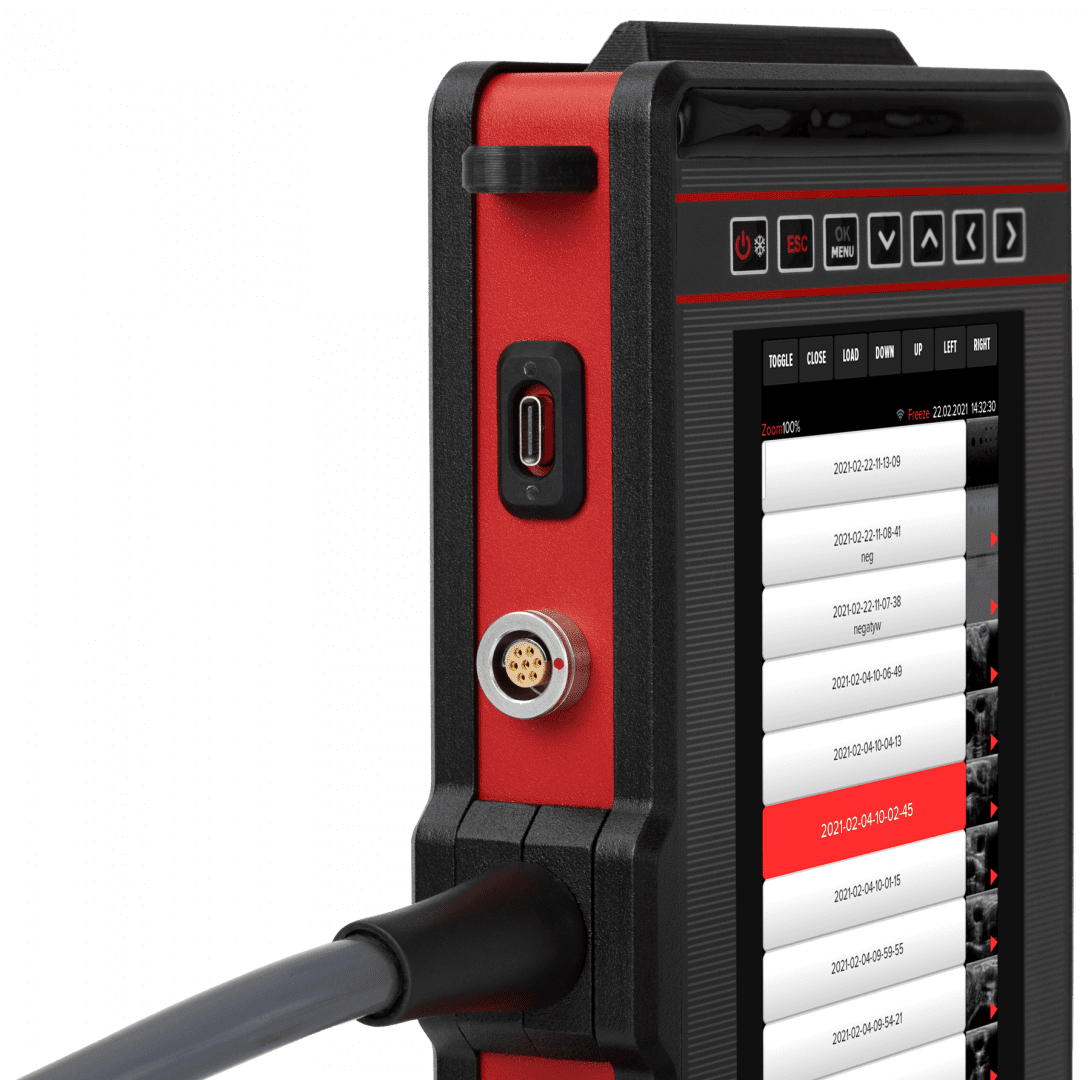

  • Barely larger than a palm of a hand, iScan mini is made of aluminium, which makes it extremely durable. Its external dimensions are 170x140x52 mm, with a large, 5 inch screen. State of the art technology enclosed in a miniature size.

Lightweight

  • A ready to work iScan mini weights only 1350 grams, which means that even many hours of work will not strain your back.

Optimised Workflow

  • All the necessary functions are always within reach. This is provided by programmable function keys, which we have designed based on conversations with many specialists. If you want, you can adapt the keys to your needs.

Automatic Follicle Measurement

  • Rapid and precise measurement you can rely on. You no longer need to wonder at what location the largest dimension of the follicle is located. iScan mini will do this for you.

Wireless Communication

  • An interesting case? Or maybe an ambiguous image? Share an image or consult a colleague. Now sharing images and cine loops is fast and easy. All of this thanks to the built-in WiFi antenna and new, free app for Android mobile devices.

Clearer Images

  • LuciD is a function which reduces noise in the image and improves the clarity of the image.

Screen and Goggles

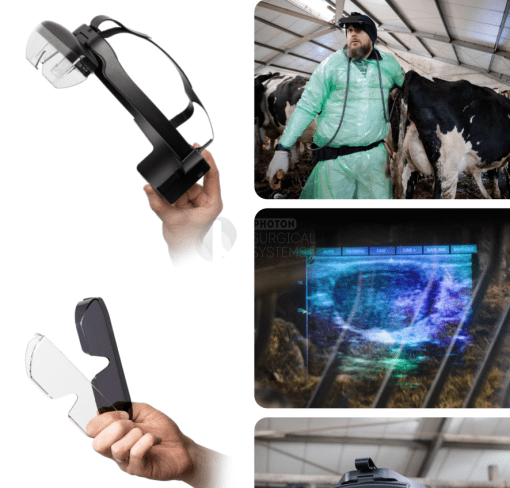

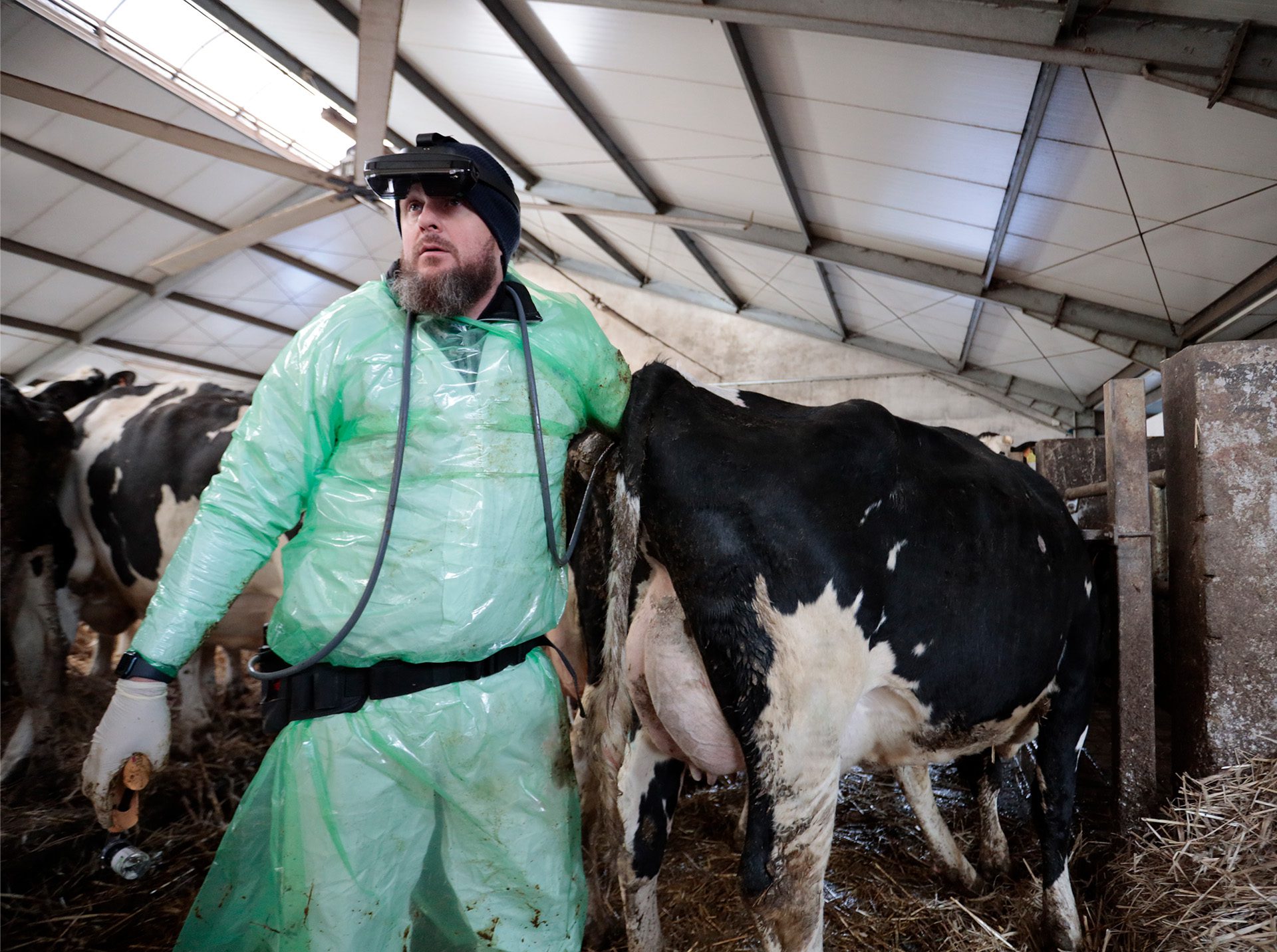

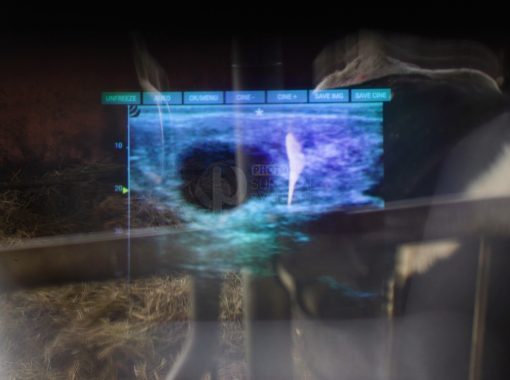

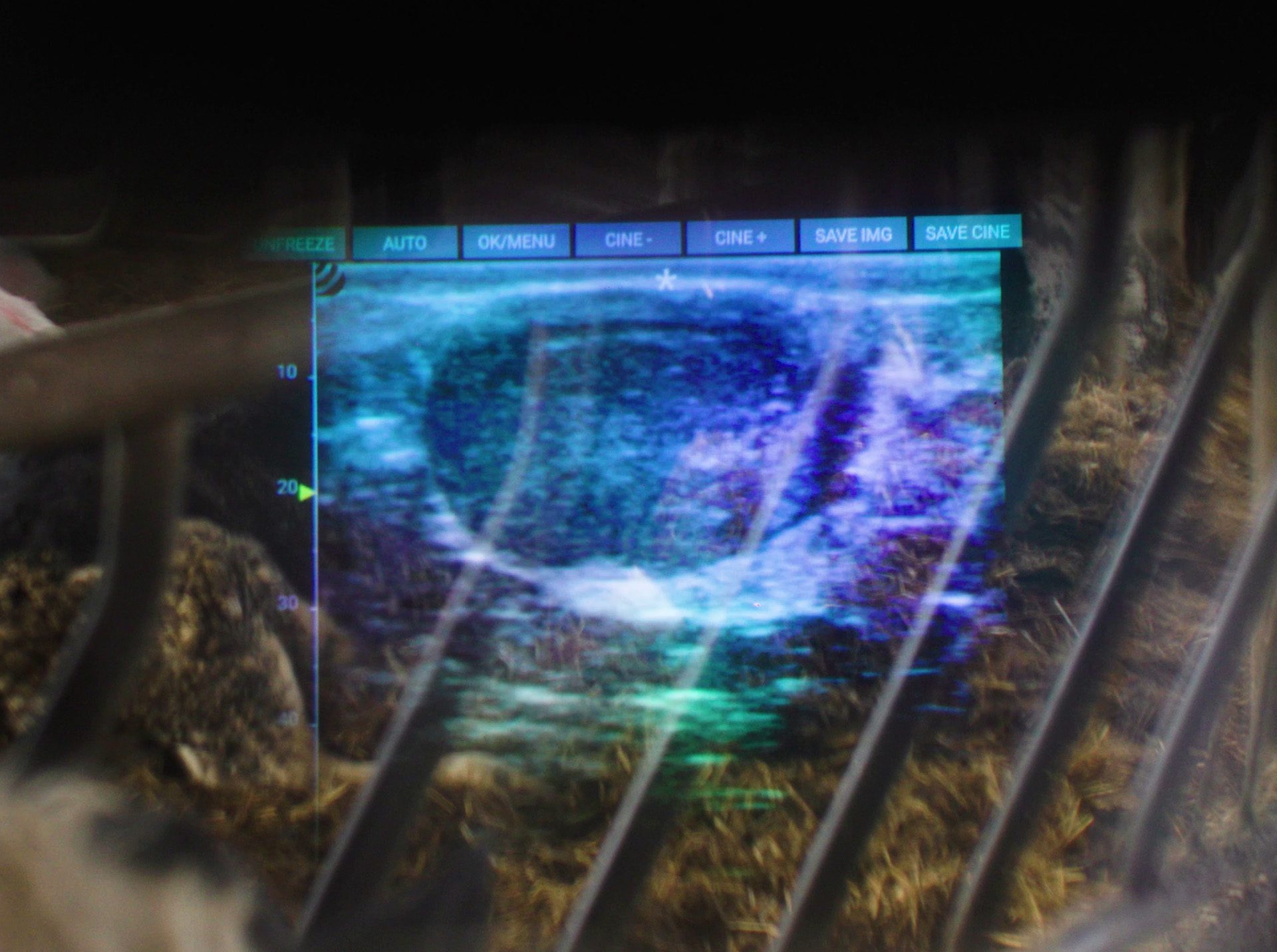

  • Use a built-in screen or OLED goggles — it’s up to you! The image will be always clear and contrasted.

Warranty:

  • 24 months for the ultrasound scanner
  • 6 months for the battery

Additional Equipment

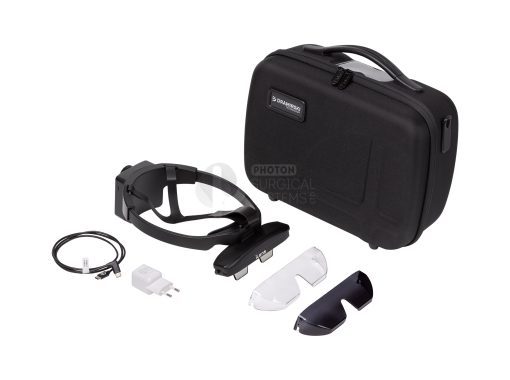

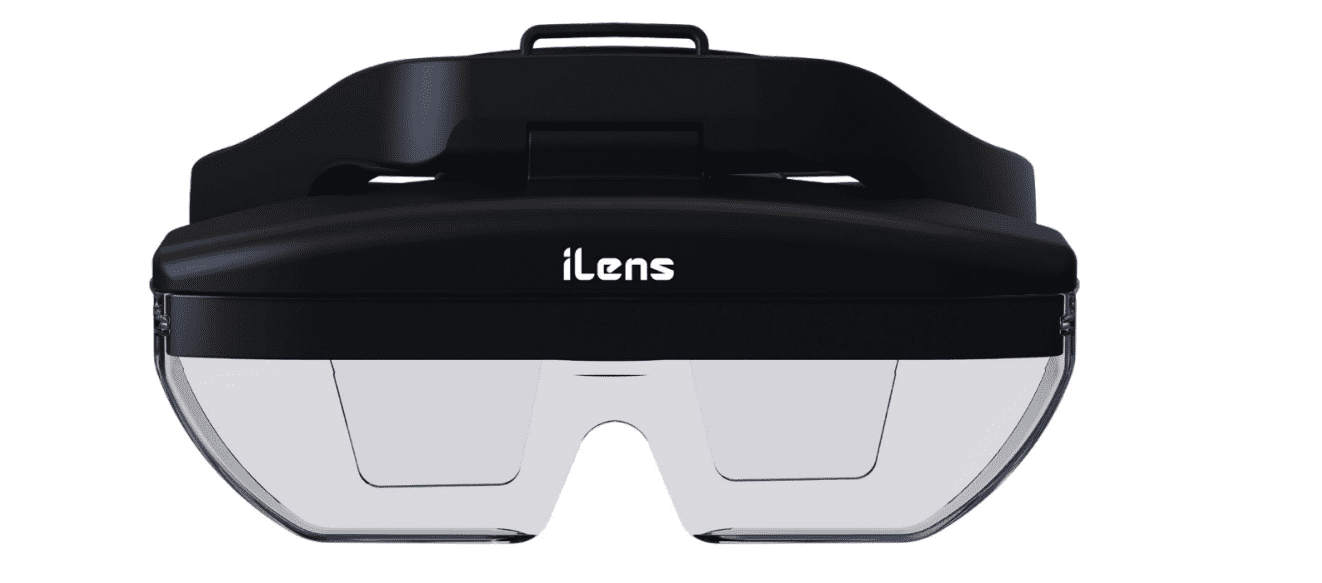

  • OLED goggles
  • Linear rectal probe extension for cattle
  • Linear rectal probe extension for sheep

What’s Included:

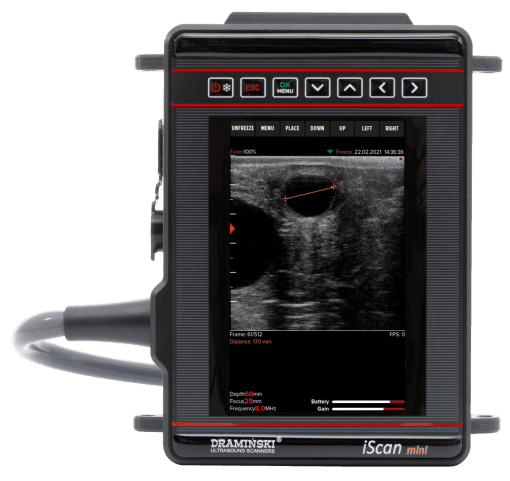

  • Ultrasound scanner with a linear rectal probe
  • External battery x2
  • Battery charger with a 230 V charging cable

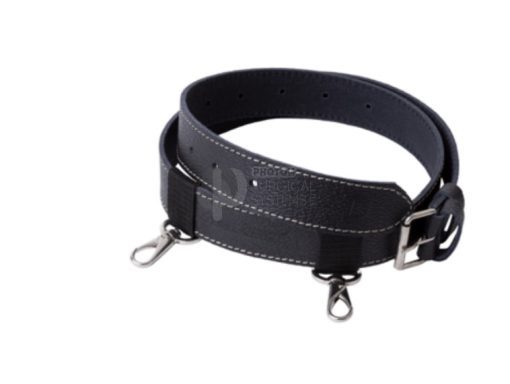

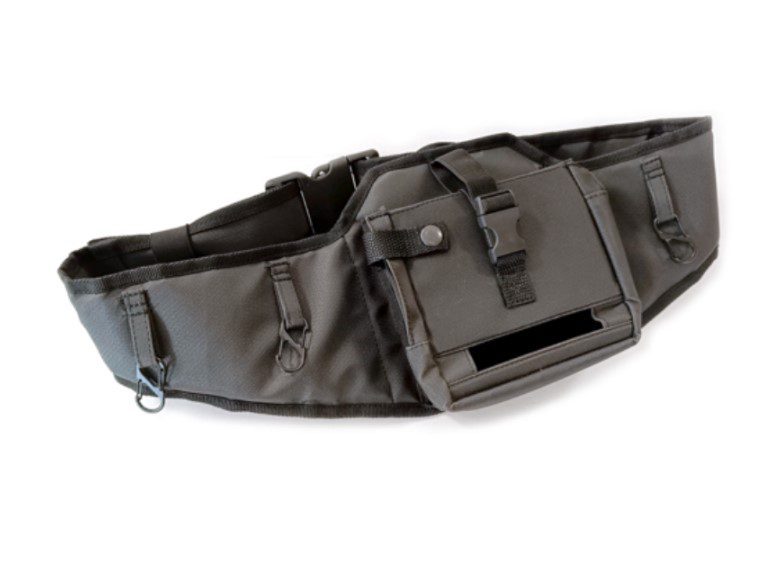

  • Carrying belts

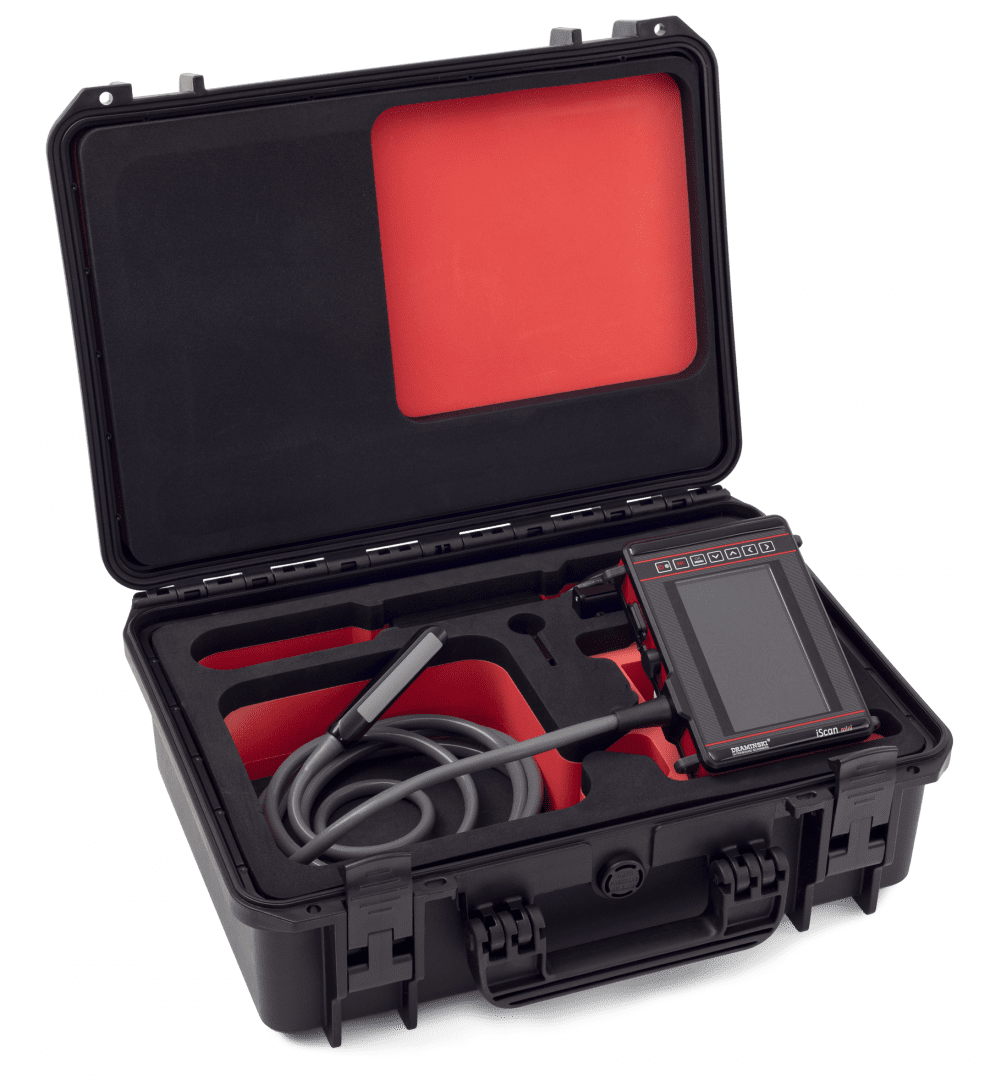

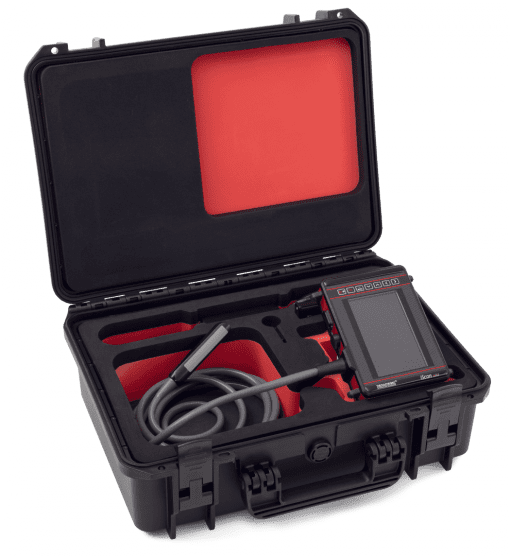

  • Transport case
  • User guide on a USB drive
  • Additional equipment
  • OLED goggles (*if this option is selected)



Draminski iScan mini - iscan mini infografika en

Technical Data

Dimensions 140 x 170 x 52 mm (width x height x depth)
Weight of the device 1350 g with the probe and the battery
Weight of the battery 292 g
Purpose Ultrasound diagnostics of farm animals:
Diagnostics of the reproductive tract
Confirmation and monitoring of pregnancy
Determination of sex of foetus
Determination of age of foetus
Measurement of backfat thickness
Ultrasound examination of the lungs
Uses other than specified above are not excluded
Image display modes Screen
Goggles
Image rotated by 90°
Image rotated by 180°
Greyscale 256 shades
Gamma 10 settings
Display screen 5.0” diagonal
IPS LCD LED
500 cd/m2
480 x 800 px
Probe Electronic, broadband
7 MHz, 60 mm.
Method of connecting a probe Permanent
Keyboard Membrane, water resistant
Imaging mode B Mode
B+B Mode
Image management Freezing the image
Dimensioning
Zoom 100–160% at 20% increments
Saving to internal memory
Exporting to external storage device
Exporting to mobile devices with the use of WiFi
Measurements Distance
Follicle (automatic)
Area (from 2 measurements)
Saving data to the memory Image with measurements
Cine loop (max. 512 frames)
Image memory 200
Cine loop memory 200
Data transmission USB-C
WiFi (to Draminski App)
Presets May be created by the user
Power supply Li-Ion, 14.4 V, 2.25 Ah
Continuous operation when the battery is fully charged Up to 3:40 hours
Charging of the battery pack 3 hours
Battery charge indicator Automatic — graphic indicator
Protection class IP32
Protection against objects larger than 2.5 mm
Protection against water dripping at an angle of a maximum of 15 degrees
Operating temperature From 0°C to +40°C
Recommended storage temperature From 0°C



Options:iScan Mini, iScan Mini + OLED Goggles
