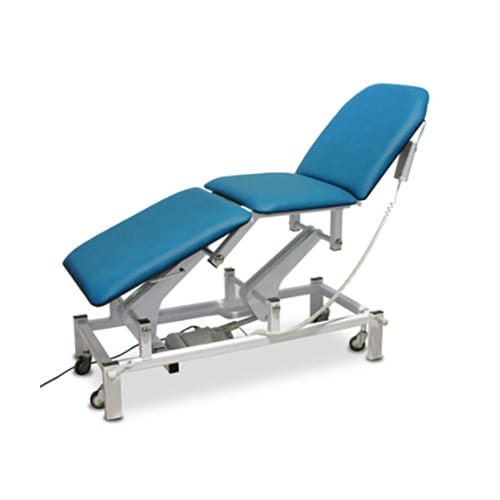

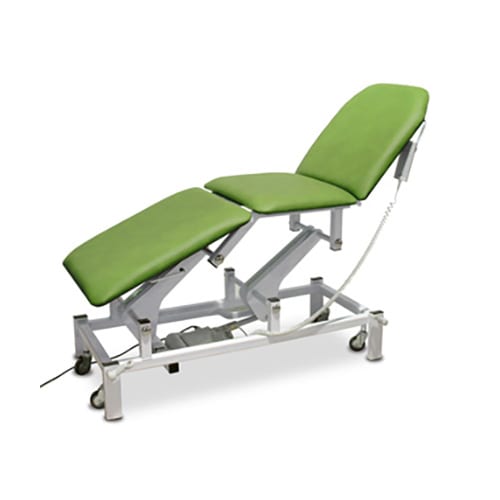

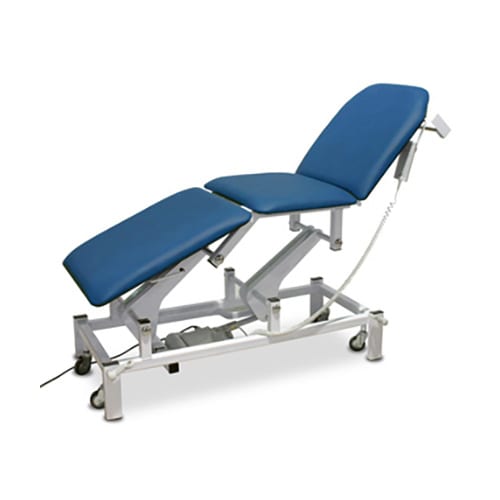

Bristol Maid – Treatment & Examination Couch, Three Section

Bristol Maid Couch – Examination, Variable Height, Three Section
  • Hidden
  • This field is for validation purposes and should be left unchanged.
SKU: N-BRIS-EC1310
Product Features
  • Safe working load and lifting capacity (from minimum height) of 225kg
  • Adjustable angle backrest from -25 to +90 degrees
  • Adjustable angle footrest from -25 to +75 degrees
  • Anti-trap gas struts fitted with release levers used on back and footrest sections
  • Choice of electric or hydraulic height adjustment
  • Height adjustment from 490-950mm
  • Retractable castors fitted to both ends to assist with movement & positioning
  • Fitted with one adjustable foot to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • Electric models (230V ~, 50/60H) fitted with a UK 3 pin plug and available with either a hand or foot switch
  • Hydraulic models use a foot pump pedal positioned on both sides of the couch
  • Seamless and contoured upholstery using flame retardant and anti-bacterial vinyl
  • Frames pre-drilled to accept accessories
  • Overall dimensions w 630 x d 1790 x h 490-950mm
  • Standard Colours
    • Paint – White,
    • Vinyl – Bristol Blue (Please see colour chart below for alternative colours available at an extra cost)
Code Description Overall Dimensions (W X D X H) Weight
EC1305/VAQ Variable Height, Three Section, Hydraulic, Aquamarine 630 x 1790 x 490-950mm 70.2kgs
EC1305/VBB Variable Height, Three Section, Hydraulic, Bristol Blue 630 x 1790 x 490-950mm 70.2kgs
EC1305/VCB Variable Height, Three Section, Hydraulic, Coastal Blue 630 x 1790 x 490-950mm 70.2kgs
EC1305/VCH Variable Height, Three Section, Hydraulic, Chocolate 630 x 1790 x 490-950mm 70.2kgs
EC1305/VFR Variable Height, Three Section, Hydraulic, Flame Red 630 x 1790 x 490-950mm 70.2kgs
EC1305/VGH Variable Height, Three Section, Hydraulic, Graphite 630 x 1790 x 490-950mm 70.2kgs
EC1305/VLI Variable Height, Three Section, Hydraulic, Lime 630 x 1790 x 490-950mm 70.2kgs
EC1305/VOB Variable Height, Three Section, Hydraulic, Onyx Black 630 x 1790 x 490-950mm 70.2kgs
EC1305/VPE Variable Height, Three Section, Hydraulic, Peach 630 x 1790 x 490-950mm 70.2kgs
EC1305/VSD Variable Height, Three Section, Hydraulic, Sand Dune 630 x 1790 x 490-950mm 70.2kgs
EC1310/VAQ Variable Height, Three Section, Electric, Handswitch, Aquamarine 630 x 1790 x 490-950mm 70.2kgs
EC1310/VBB Variable Height, Three Section, Electric, Handswitch, Bristol Blue 630 x 1790 x 490-950mm 70.2kgs
EC1310/VCB Variable Height, Three Section, Electric, Handswitch, Coastal Blue 630 x 1790 x 490-950mm 70.2kgs
EC1310/VCH Variable Height, Three Section, Electric, Handswitch, Chocolate 630 x 1790 x 490-950mm 70.2kgs
EC1310/VFR Variable Height, Three Section, Electric, Handswitch, Flame Red 630 x 1790 x 490-950mm 70.2kgs
EC1310/VGH Variable Height, Three Section, Electric, Handswitch, Graphite 630 x 1790 x 490-950mm 70.2kgs
EC1310/VLI Variable Height, Three Section, Electric, Handswitch, Lime 630 x 1790 x 490-950mm 70.2kgs
EC1310/VOB Variable Height, Three Section, Electric, Handswitch, Onyx Black 630 x 1790 x 490-950mm 70.2kgs
EC1310/VPE Variable Height, Three Section, Electric, Handswitch, Peach 630 x 1790 x 490-950mm 70.2kgs
EC1310/VSD Variable Height, Three Section, Electric, Handswitch, Sand Dune 630 x 1790 x 490-950mm 70.2kgs
EC1315/VAQ Variable Height, Three Section, Electric, Footswitch, Aquamarine 630 x 1790 x 490-950mm 70.2kgs
EC1315/VBB Variable Height, Three Section, Electric, Footswitch, Bristol Blue 630 x 1790 x 490-950mm 70.2kgs
EC1315/VCB Variable Height, Three Section, Electric, Footswitch, Coastal Blue 630 x 1790 x 490-950mm 70.2kgs
EC1315/VCH Variable Height, Three Section, Electric, Footswitch, Chocolate 630 x 1790 x 490-950mm 70.2kgs
EC1315/VFR Variable Height, Three Section, Electric, Footswitch, Flame Red 630 x 1790 x 490-950mm 70.2kgs
EC1315/VGH Variable Height, Three Section, Electric, Footswitch, Graphite 630 x 1790 x 490-950mm 70.2kgs
EC1315/VLI Variable Height, Three Section, Electric, Footswitch, Lime 630 x 1790 x 490-950mm 70.2kgs
EC1315/VOB Variable Height, Three Section, Electric, Footswitch, Onyx Black 630 x 1790 x 490-950mm 70.2kgs
EC1315/VPE Variable Height, Three Section, Electric, Footswitch, Peach 630 x 1790 x 490-950mm 70.2kgs
EC1315/VSD Variable Height, Three Section, Electric, Footswitch, Sand Dune 630 x 1790 x 490-950mm 70.2kgs
EC1320/VAQ Variable Height, Three Section, Electric, Electric Backrest, Handswitch, Aquamarine 630 x 1790 x 490-950mm 72.5kgs
EC1320/VBB Variable Height, Three Section, Electric, Electric Backrest, Handswitch, Bristol Blue 630 x 1790 x 490-950mm 72.5kgs
EC1320/VCB Variable Height, Three Section, Electric, Electric Backrest, Handswitch, Coastal Blue 630 x 1790 x 490-950mm 72.5kgs
EC1320/VCH Variable Height, Three Section, Electric, Electric Backrest, Handswitch, Chocolate 630 x 1790 x 490-950mm 72.5kgs
EC1320/VFR Variable Height, Three Section, Electric, Electric Backrest, Handswitch, Flame Red 630 x 1790 x 490-950mm 72.5kgs
EC1320/VGH Variable Height, Three Section, Electric, Electric Backrest, Handswitch, Graphite 630 x 1790 x 490-950mm 72.5kgs
EC1320/VLI Variable Height, Three Section, Electric, Electric Backrest, Handswitch, Lime 630 x 1790 x 490-950mm 72.5kgs
EC1320/VOB Variable Height, Three Section, Electric, Electric Backrest, Handswitch, Onyx Black 630 x 1790 x 490-950mm 72.5kgs
EC1320/VPE Variable Height, Three Section, Electric, Electric Backrest, Handswitch, Peach 630 x 1790 x 490-950mm 72.5kgs
EC1320/VSD Variable Height, Three Section, Electric, Electric Backrest, Handswitch, Sand Dune 630 x 1790 x 490-950mm 72.5kgs
EC1325/VAQ Variable Height, Three Section, Electric, Electric Backrest, Footswitch, Aquamarine 630 x 1790 x 490-950mm 72.5kgs
EC1325/VBB Variable Height, Three Section, Electric, Electric Backrest, Footswitch, Bristol Blue 630 x 1790 x 490-950mm 72.5kgs
EC1325/VCB Variable Height, Three Section, Electric, Electric Backrest, Footswitch, Coastal Blue 630 x 1790 x 490-950mm 72.5kgs
EC1325/VCH Variable Height, Three Section, Electric, Electric Backrest, Footswitch, Chocolate 630 x 1790 x 490-950mm 72.5kgs
EC1325/VFR Variable Height, Three Section, Electric, Electric Backrest, Footswitch, Flame Red 630 x 1790 x 490-950mm 72.5kgs
EC1325/VGH Variable Height, Three Section, Electric, Electric Backrest, Footswitch, Graphite 630 x 1790 x 490-950mm 72.5kgs
EC1325/VLI Variable Height, Three Section, Electric, Electric Backrest, Footswitch, Lime 630 x 1790 x 490-950mm 72.5kgs
EC1325/VOB Variable Height, Three Section, Electric, Electric Backrest, Footswitch, Onyx Black 630 x 1790 x 490-950mm 72.5kgs
EC1325/VPE Variable Height, Three Section, Electric, Electric Backrest, Footswitch, Peach 630 x 1790 x 490-950mm 72.5kgs
EC1325/VSD Variable Height, Three Section, Electric, Electric Backrest, Footswitch, Sand Dune 630 x 1790 x 490-950mm 72.5kgs
Weight: 70.0 kg
Dimensions: 1935 × 610 × 485855 cm
